| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Width |

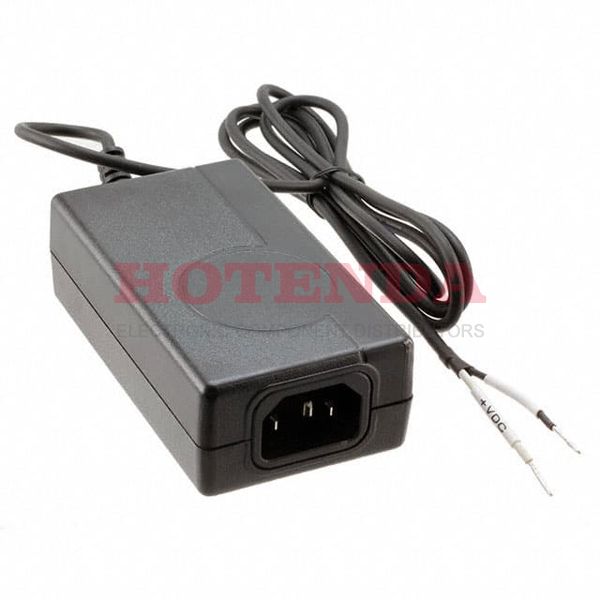

This AC/DC desktop adapter from SL Power Electronics, part number CENB1020A2465F01, is designed for ITE (Commercial) applications. It delivers a stable 24V output with a maximum current of 750mA, providing a total power of 18W. The adapter operates within a temperature range of 0°C to 40°C and features Level V efficiency.
The input connection is via an IEC 320-C14 connector, and the output is provided as stripped, tinned wire leads. The adapter has a compact desktop form factor (Class I) with dimensions of 84.0mm x 47.0mm x 32.3mm. It is designed for international use and has an input voltage range of 100-240 VAC. The no-load power consumption is a maximum of 300mW.
The output voltage is 24V and the output current is 750mA.
The input voltage range is 100-240VAC.
The operating temperature range is 0°C to 40°C.
The adapter meets Level V efficiency.
The maximum no-load power consumption is 300mW.
The dimensions are 84.0mm length, 47.0mm width, and 32.3mm height.
The adapter carries CE and cULus approvals.
