| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight |

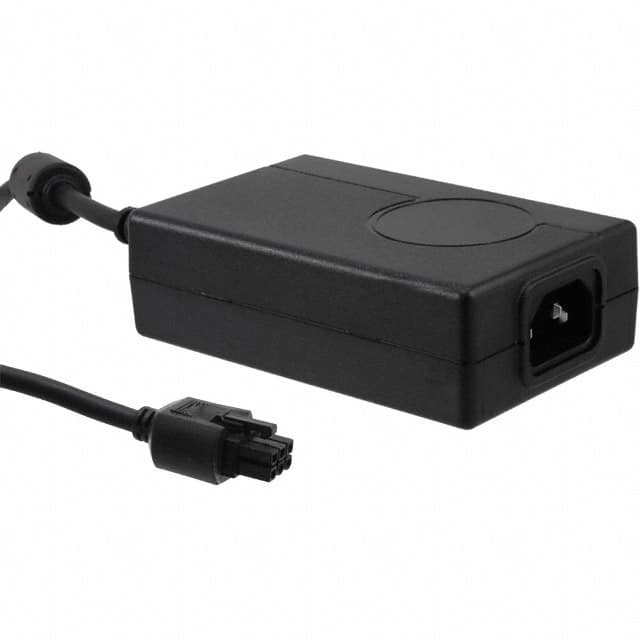

This AC/DC desktop adapter, part number CENB1020A1251Q01 from SL Power Electronics, provides a stable 12V output with a maximum current of 1.5A, delivering 18W of power. It operates within a universal input voltage range of 100 to 240 VAC and features an Efficiency Level V rating.
The adapter is designed for ITE (Commercial) applications and has a compact desktop form factor (Class II). It includes an IEC 320-C18 input connector and a 6-position rectangular output connector. The dimensions are 84.0mm x 47.0mm x 32.3mm, and it weighs 150.14g.
Environmental compliance includes RoHS status as RoHS Compliant and a Moisture Sensitivity Level (MSL) of 1 Unlimited. The operating temperature range is from 0°C to 40°C. The input cord is sold separately.
The adapter accepts 100 to 240 VAC input and provides a regulated 12V DC output.
The unit operates reliably between 0°C and 40°C.
The adapter delivers a maximum of 18 watts at 1.5 amps.
It holds CE and cULus approval agency certifications.
The unit utilizes a standard IEC 320-C18 input connector.
