| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

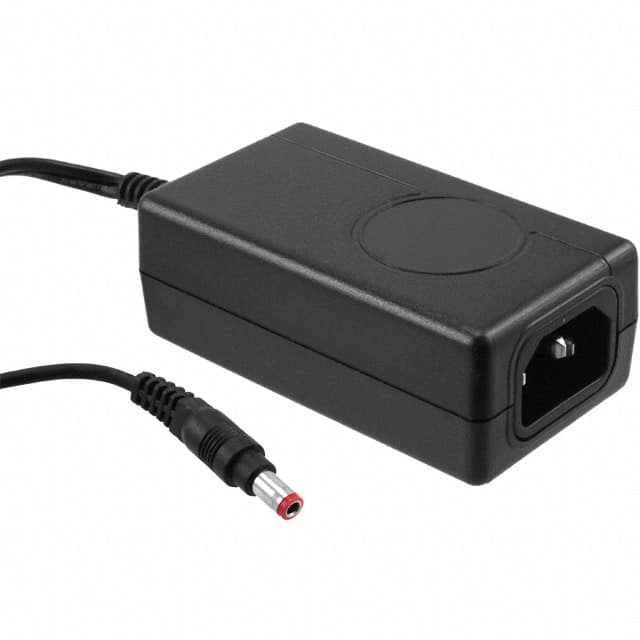

This AC/DC desktop adapter from SL Power Electronics, part number CENB1020A0503F01, provides a 5V output with a maximum power of 15W. It is designed for ITE (Commercial) applications and meets Level V efficiency standards. The adapter features an IEC 320-C14 input connector and a barrel plug output with positive center polarization.
With dimensions of 84.0mm x 47.0mm x 32.3mm, this adapter operates within a temperature range of 0°C to 40°C. It has a low no-load power consumption of 300mW maximum. The input cord is sold separately and has a length of 59 inches (1.50m). The adapter is compliant with CE and cULus approval agencies.
This unit is classified as Desktop (Class I) and is suitable for international use. It adheres to RoHS3 compliance and has a Moisture Sensitivity Level (MSL) of 1. The REACH status is unaffected.
5V DC.
3A.
15W.
IEC 320-C14.
Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
0°C to 40°C.
Level V.
