| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

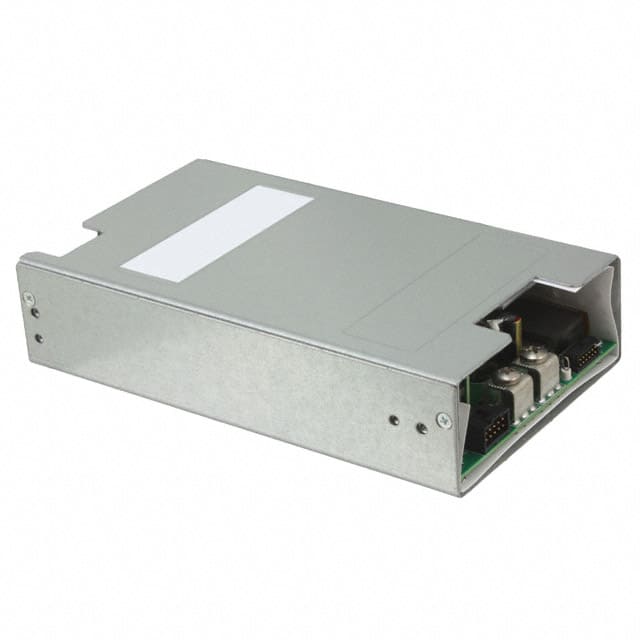

The Murata CEF400-112C is an enclosed AC DC converter designed for commercial ITE applications. It provides 400W of power with a single output and a current rating of 33.3A.
Key electrical specifications include an efficiency of 83% and a universal input voltage range. The converter offers features such as adjustable output, I²C™ interface, load sharing, remote on/off, and remote sense capabilities. It has an isolation voltage of 1.5 kV.
Mechanically, the CEF400-112C is designed for chassis mounting, with dimensions of 101.6mm x 177.8mm x 40.4mm. The operating temperature range is from 0°C to 50°C.
Environmental compliance includes RoHS3 compliance, an MSL of 1 Unlimited, and REACH unaffected status.
0°C to 50°C.
Chassis mount.
12V.
33.3 A.
400W.
83%.
1.5 kV.
