| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
723,200 pcs
|
723200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present |

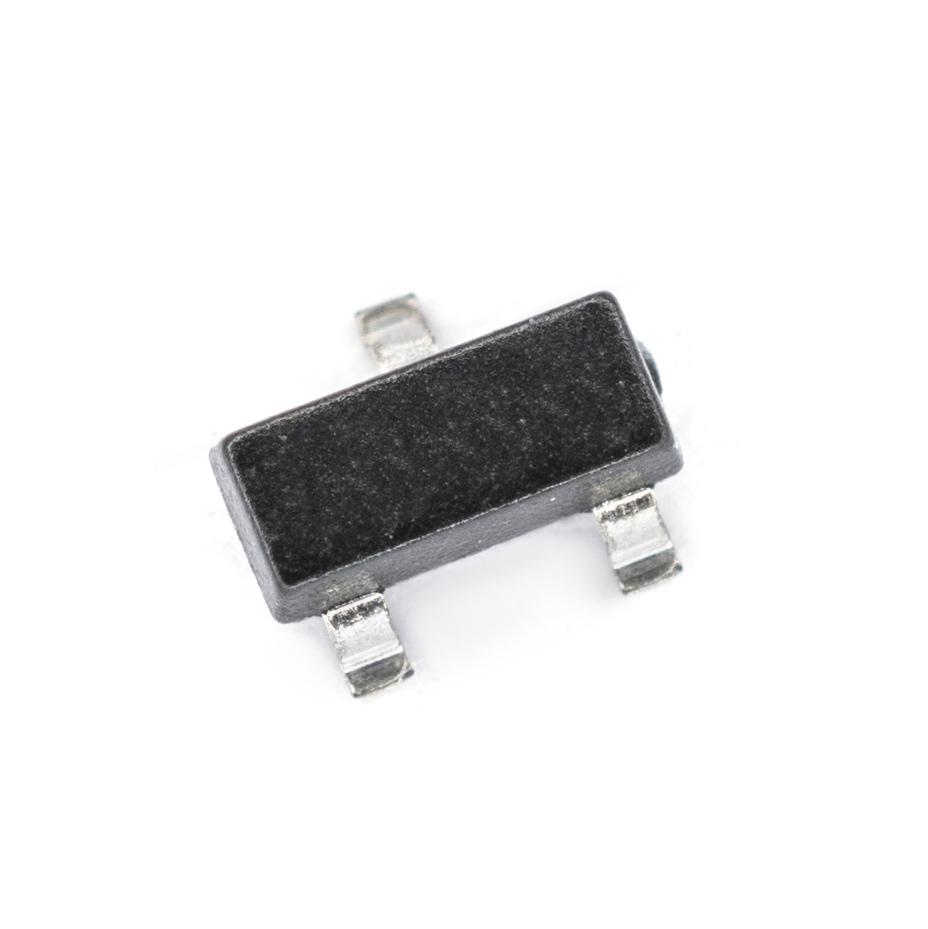

The Bourns CDSOT23-SM712 is a TVS (Transient Voltage Suppressor) diode housed in a compact SOT-23 surface mount package. This bidirectional device is engineered to protect sensitive electronic components from voltage transients and ESD events.
Key electrical characteristics include a peak pulse power of 400W, a peak pulse current of 17A (8/20µs), and reverse standoff voltages of 12V and 7V. The breakdown voltage is rated at a minimum of 13.3V or 7.5V, with clamping voltages of 26V and 14V respectively. Its capacitance is 75pF at 1MHz, making it suitable for various signal line applications.
The operating temperature range is from -55°C to 150°C, ensuring reliable performance in demanding environments. The SOT-23 package is ideal for space-constrained designs, and its surface mount capability facilitates automated assembly processes. This TVS diode is designed for applications requiring robust protection against voltage surges.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak pulse power is 400W.
The reverse standoff voltage options are 12V and 7V.
The breakdown voltage is a minimum of 13.3V or 7.5V.
The clamping voltage at Ipp is 26V or 14V.
The capacitance is 75pF at 1MHz.
The operating temperature range is -55°C to 150°C.
The Bourns CDSOT23-SM712 is in a SOT-23-3 package.
