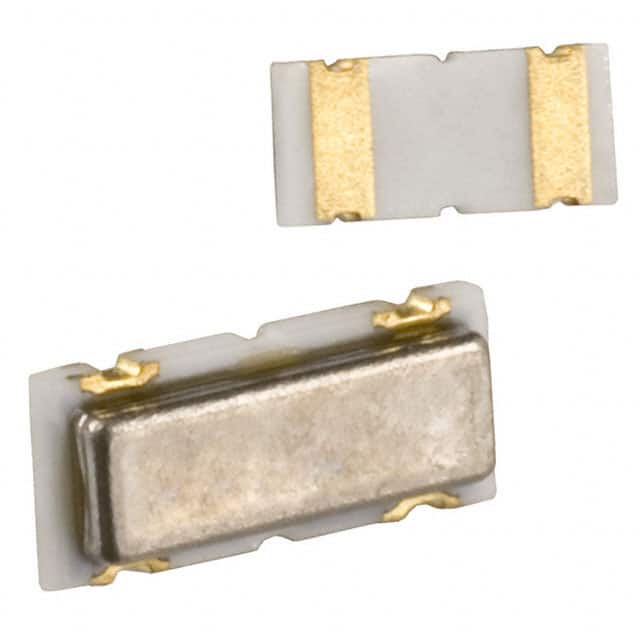

CDSCB10M7GA119-R0 Ceramic discriminator filter by Murata with 10.7MHz center frequency and 500kHz bandwidth. Surface mount package in 1808 (4520 Metric) with 2 PC pads.
Mfr Part #:

CDSCB10M7GA119-R0

Available from 1 distributors
Mfr Name: Murata
Murata
Ceramic discriminator filter by Murata with 10.7MHz center frequency and 500kHz bandwidth. Surface mount package in 1808 (4520 Metric) with 2 PC pads.
✓ Total Stock: 471 pcs
$ Price Range: $0.63

CDSCB10M7GA119-R0 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
HMB Electronics LLC ✓
Non-Authorised Inventory information
471 pcs
On Request
471 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CDSCB10M7GA119-R0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Filter Type
Frequency
Height (Max)
Insertion Loss
Length
Mounting Type
Tape & Reel
Width
View Similar Products (0)

CDSCB10M7GA119-R0 Description

Short technical summary and product information.

The Murata CDSCB10M7GA119-R0 is a ceramic discriminator filter designed for 10.7MHz center frequency with a bandwidth of 500kHz. It features an insertion loss of 3dB. This filter is suitable for signal conditioning applications in communications equipment. The component is surface mountable in a compact 1808 (4520 Metric) package with 2 PC pads, measuring 4.50mm x 2.00mm x 1.00mm (max). It is RoHS3 compliant and REACH unaffected. Note: The datasheet is a generic catalog; part-specific specifications should be verified.

CDSCB10M7GA119-R0 Quick Information

Product Type: Ceramic Discriminator Filter
Series: CDSCB
Canonical Name: Murata CDSCB10M7GA119-R0 Ceramic Discriminator Filter, 10.7MHz
Subcategory: Discriminator

CDSCB10M7GA119-R0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

CDSCB10M7GA119-R0 Estimated Pricing

Qty Low High
1+ $0.63 $0.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

CDSCB10M7GA119-R0 Features

  • 10.7MHz center frequency discriminator filter.
  • 500kHz bandwidth for signal conditioning.
  • 3dB insertion loss typical.
  • Surface mount 1808 package.
  • RoHS3 compliant and REACH unaffected.

CDSCB10M7GA119-R0 Applications

  • Used in communications equipment signal processing.
  • Ideal for IF filtering in radio receivers.
  • Suitable for ceramic discriminator applications.

CDSCB10M7GA119-R0 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the center frequency of the CDSCB10M7GA119-R0?

10.7 MHz.

What is the bandwidth of this filter?

500 kHz.

What is the insertion loss?

3 dB.

What is the package type?

Surface mount, 1808 (4520 Metric) with 2 PC pads.

Is this component RoHS compliant?

Yes, RoHS3 compliant.

What is the mounting type?

Surface mount.

What are the dimensions?

4.50mm length, 2.00mm width, 1.00mm max height.
