| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
910 pcs
|
910 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Tolerance | |
| Width |

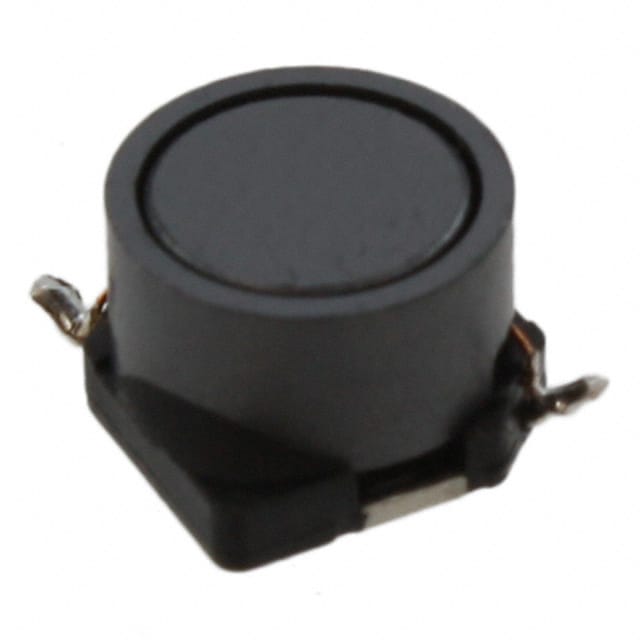

The Sumida Corp CDRR75NP-471MC is a shielded SMD power inductor from the CDRR75 series. It is constructed with a ferrite drum core and offers a nominal inductance of 470µH with a tolerance of ±20% at 100 kHz. The component is rated for a current of 380mA and has a maximum DC resistance of 1.416 Ohms.
This inductor operates within a temperature range of -40°C to +125°C. Its dimensions are 7.2 x 7.2 x 4.8 mm, making it suitable for surface mounting. The product weight is approximately 0.6g.
Applications for this inductor include consumer electronics such as HDDs and LCD displays, as well as automotive systems like ABS, SRS airbags, and car navigation. It is supplied in carrier tape and reel packaging.
The inductance value is 470 microhenries at 100 kHz.
The current rating is 380mA.
The maximum DC resistance is 1.416 ohms at 20°C.
The operating temperature range is from -40°C to +125°C.
Yes, it is designed for surface mount applications.
It comes in a nonstandard package with tape and reel packaging.
