| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | 2018+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Test Frequency | |
| Tolerance | |
| Weight | |
| Width |

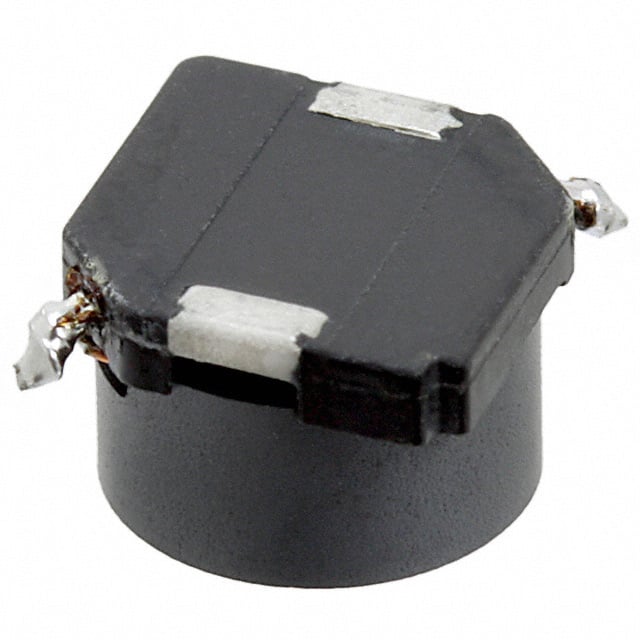

The CDRR75NP-101MC is a surface-mount power inductor from SUMIDA CORP's CDRR75 series. It features a ferrite drum core construction with magnetic shielding, providing low electromagnetic interference. The inductor offers 100µH nominal inductance with ±20% tolerance, a maximum DC resistance of 315mOhms, and a rated current of 830mA based on a 40°C temperature rise. Saturation current is 440mA. The component operates over a temperature range of -40°C to +125°C and is suitable for lead-free soldering with a peak reflow temperature of 260°C. It is packaged in tape and reel with 1000 pieces per reel. Applications include consumer electronics such as HDDs, personal computers, and LCD displays, as well as automotive systems like ABS, airbags, and car audio. The inductor is RoHS compliant and has a moisture sensitivity level of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
| 10+ | $1.19 | $1.19 |
| 25+ | $1.12 | $1.12 |
| 100+ | $0.87 | $0.87 |
| 250+ | $0.83 | $0.83 |
| 1,000+ | $0.69 | $0.69 |
| 2,000+ | $0.67 | $0.67 |
| 5,000+ | $0.63 | $0.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100µH at 100kHz test frequency, ±20% tolerance.
830mA based on a 40°C temperature rise at 20°C ambient.
315mOhm maximum.
6.9mm x 6.9mm x 4.8mm, nonstandard surface mount package.
Yes, it is magnetically shielded.
-40°C to +125°C (including self temperature rise).
440mA when inductance decreases to 90% of nominal value.
