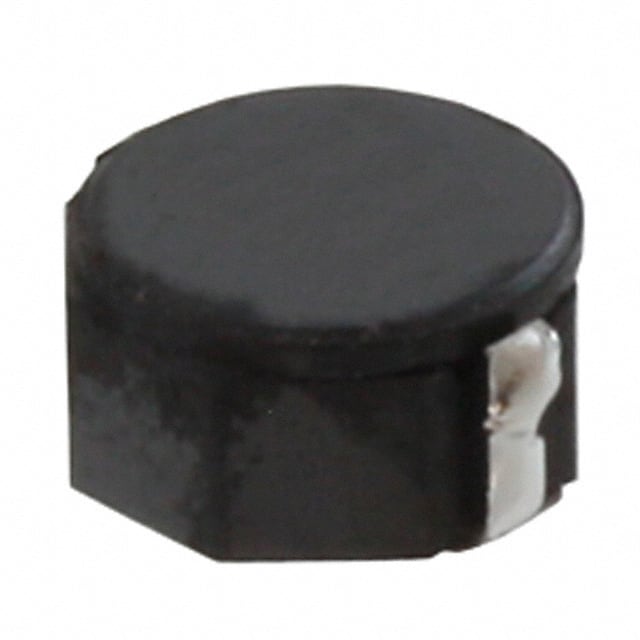

The CDRH8D43NP-100NC is a shielded SMD power inductor from Sumida Corporation, part of the CDRH8D43 series. It features a ferrite drum core construction with magnetic shielding, providing an inductance of 10µH (measured at 100kHz) with a tolerance of ±30%.
Electrically, this inductor offers a maximum DC resistance of 36mOhm at 20°C and a rated current of 3.2A. The saturation current is typically 4.0A (at which inductance drops to 65% of nominal), and the temperature rise current is typically 3.50A for a 40°C temperature rise. The operating temperature range is -40°C to +100°C, including self-heating.
The component is housed in a nonstandard SMD package with maximum dimensions of 8.3mm x 8.3mm x 4.5mm and a reference weight of 0.93g. It is supplied in tape and reel packaging (13-inch reel, 500 pieces per reel) and is RoHS3 compliant with MSL Level 1 (unlimited floor life).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.95 | $0.95 |
| 10+ | $0.79 | $0.79 |
| 100+ | $0.65 | $0.65 |
| 250+ | $0.62 | $0.62 |
| 500+ | $0.53 | $0.53 |
| 1,000+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 10 µH, measured at 100kHz.
The rated current is 3.2 A. The saturation current is typically 4.0 A, and the temperature rise current is typically 3.50 A.
The maximum DC resistance is 36 mOhm at 20°C.
The operating temperature range is -40°C to +100°C, including the coil's self temperature rise.
Yes, it is RoHS3 compliant.
The maximum package dimensions are 8.3mm x 8.3mm x 4.5mm.
