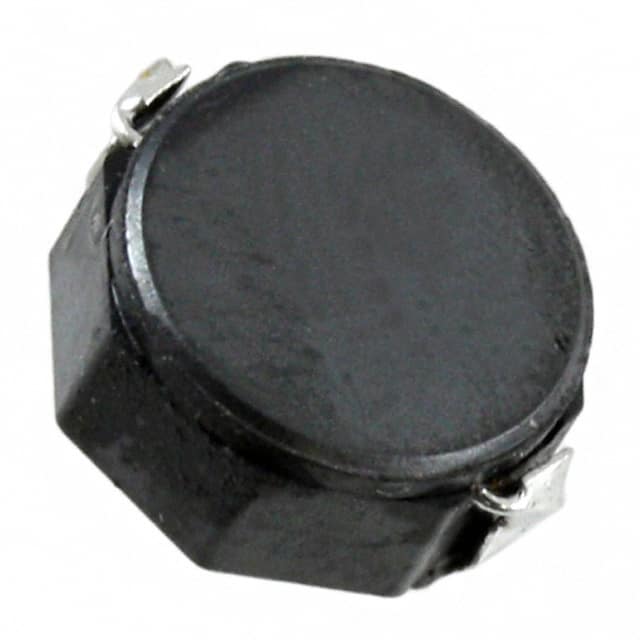

The SUMIDA CDRH8D38NP-470NC is a shielded power inductor featuring a ferrite core construction. It offers an inductance of 47 µH at 100 kHz with a tolerance of ±30%. The DC resistance is 189 mOhm maximum (151 mOhm typical). This inductor is rated for a temperature rise current of 1.42 A (ΔT=40°C) and a saturation current of 1.52 A at 20°C (1.28 A at 105°C). The device is magnetically shielded, reducing EMI in sensitive applications.
The component is designed for surface mount assembly with a nonstandard package measuring 8.00 mm x 8.00 mm x 4.00 mm. It operates over a temperature range of -40°C to 100°C and is compatible with reflow soldering up to 260°C peak. The packaging is tape and reel with 1000 pieces per 13-inch reel.
Typical applications include DC-DC converter inductors in portable devices such as PDAs, hard disk drives, and digital still cameras/camcorders. The inductor is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.95 | $0.95 |
| 10+ | $0.80 | $0.80 |
| 25+ | $0.76 | $0.76 |
| 100+ | $0.62 | $0.62 |
| 250+ | $0.60 | $0.60 |
| 500+ | $0.57 | $0.57 |
| 1,000+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 47 µH measured at 100 kHz.
The DC resistance is 189 mOhm maximum and 151 mOhm typical at 20°C.
Temperature rise current (ΔT=40°C) is 1.42 A. Saturation current (65% of nominal inductance) is 1.52 A at 20°C and 1.28 A at 105°C.
The package is Nonstandard surface mount, dimensions 8.00 mm x 8.00 mm x 4.00 mm.
Yes, it is magnetically shielded.
The operating temperature range is -40°C to 100°C (including self-temperature rise).
The core material is ferrite.
