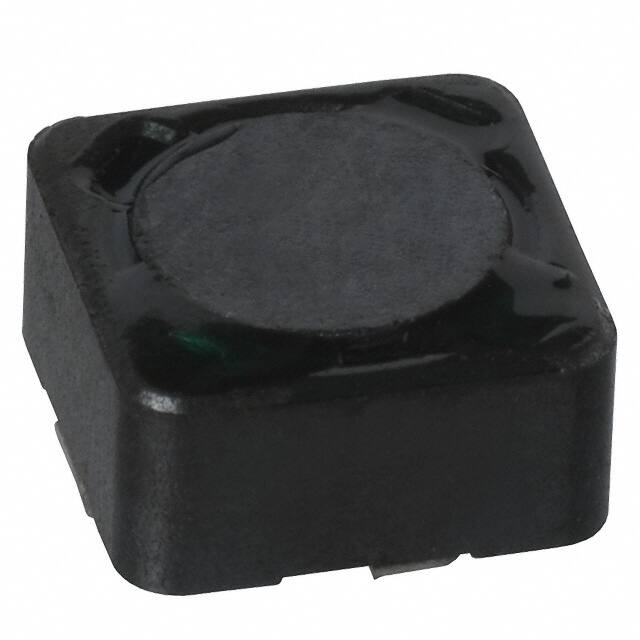

The CDRH74NP-101MC-B is a surface mount power inductor from Sumida's CDRH74 series. It features a ferrite drum core construction with magnetic shielding, making it suitable for DC-DC converter applications in consumer electronics. The inductor offers an inductance of 100 µH at 1 kHz with a tolerance of ±20%.
Key electrical specifications include a maximum DC resistance of 610 mΩ (typical 470 mΩ) and a rated current of 600 mA. The rated current is defined as the DC current at which the inductance drops to 75% of its nominal value or when the temperature rise reaches 40°C, whichever is lower at 20°C ambient.
The component is packaged in a nonstandard SMD case measuring 7.3 mm x 7.3 mm x 4.5 mm. It is supplied in tape and reel packaging with 1000 pieces per reel on a 12.9-inch diameter reel. The operating temperature range is -40°C to 100°C, including self-heating.
The inductor is RoHS compliant and has a Moisture Sensitivity Level of 1 (unlimited). It is designed for use in notebook PCs, LCD TVs, DVD players, game machines, set-top boxes, and similar devices requiring compact power inductors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.87 | $0.87 |
| 10+ | $0.71 | $0.71 |
| 100+ | $0.59 | $0.59 |
| 250+ | $0.56 | $0.56 |
| 500+ | $0.53 | $0.53 |
| 1,000+ | $0.45 | $0.45 |
| 2,000+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 µH at 1 kHz.
±20%.
610 mΩ maximum, 470 mΩ typical at 20°C.
600 mA (the DC current at which inductance drops to 75% or temperature rise reaches 40°C, whichever is lower at 20°C).
Yes, it is magnetically shielded.
-40°C to 100°C (including self-heating).
Nonstandard SMD package, dimensions 7.3 mm x 7.3 mm x 4.5 mm.
