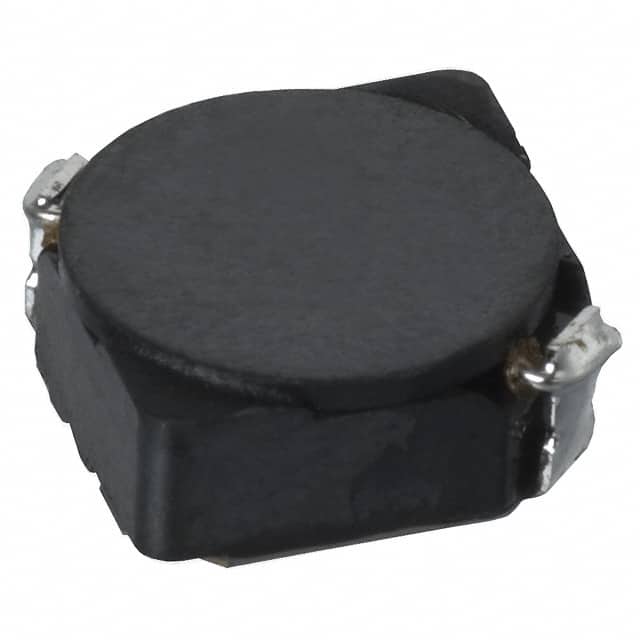

The CDRH6D38NP-6R2NC is a surface mount power inductor from Sumida Corporation's CDRH6D38 series. It features a shielded ferrite drum core construction that minimizes magnetic field leakage, making it suitable for dense PCB layouts. The inductor offers 6.2 µH inductance with ±30% tolerance and is rated for 2.5 A DC current, with a maximum DC resistance of 27 mΩ. The rated current is defined as the lower of the current causing 65% inductance drop or a 30°C temperature rise at 20°C ambient. The component operates over a temperature range of -40°C to +100°C, including self-heating. It is packaged in a nonstandard 6.70 mm x 6.70 mm x 4.00 mm surface mount package, supplied in tape and reel with 1000 pieces per 13-inch reel. Peak reflow temperature is 260°C. The part is intended for DC-DC converter applications in consumer electronics such as game machines, HDDs, notebook PCs, projectors, and PDAs. Compliance with RoHS is claimed but unverified from the datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.62 | $0.62 |
| 100+ | $0.51 | $0.51 |
| 500+ | $0.49 | $0.49 |
| 1,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 6.2 µH with ±30% tolerance measured at 100 kHz.
The rated current is 2.5 A, defined as the DC current at which inductance decreases to 65% of nominal or temperature rise reaches 30°C (whichever is lower at 20°C ambient).
The maximum DC resistance is 27 mΩ (typical 20 mΩ) at 20°C.
The inductor is surface mount in a nonstandard package with dimensions 6.70 mm x 6.70 mm x 4.00 mm (max).
Yes, it is magnetically shielded using a ferrite drum core construction.
Operating temperature range is -40°C to +100°C, including self-heating of the coil.
