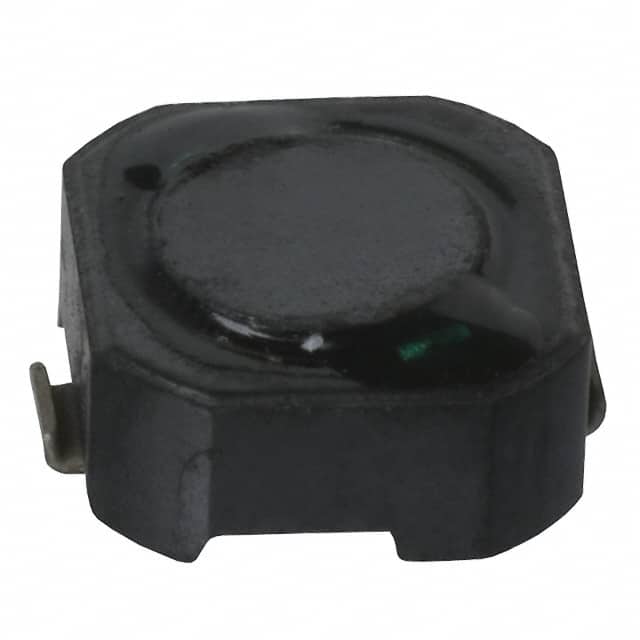

CDRH62BNP-7R1NC-B The SUMIDA CDRH62BNP-7R1NC-B is a shielded SMD power inductor with a 7.1µH inductance and a 1.22A current rating. It features a ferrite drum core construction.
Mfr Part #:

CDRH62BNP-7R1NC-B

Available from 1 distributors
Mfr Name: SUMIDA CORP
SUMIDA CORP
The SUMIDA CDRH62BNP-7R1NC-B is a shielded SMD power inductor with a 7.1µH inductance and a 1.22A current rating. It features a ferrite drum core construction.
✓ Total Stock: 1,975 pcs

CDRH62BNP-7R1NC-B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,975 pcs
On Request
1975 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CDRH62BNP-7R1NC-B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Rated Current
Shielding
Storage Temperature
Tolerance
Width
View Similar Products (0)

CDRH62BNP-7R1NC-B Description

Short technical summary and product information.

This CDRH62BNP-7R1NC-B is a fixed inductor from SUMIDA, designed with a ferrite drum core and magnetic shielding. It offers an inductance of 7.1µH with a tolerance of -20% to +40% and a rated current of 1.22A. The DC resistance (DCR) is a maximum of 110mΩ at 20℃.



With dimensions of 6.9mm x 6.5mm x 3.0mm, this inductor is suitable for surface mounting. It operates within a temperature range of -40°C to +100°C. The product is supplied in carrier tape and reel packaging, with 2000 pieces per reel.



This inductor is ideally used in applications such as Notebook PCs, LCD TVs, Game machines, HDDs, and DSC/DVCs as DC-DC converter inductors.

CDRH62BNP-7R1NC-B Quick Information

Product Type: SMD Power Inductor
Series: CDRH
Canonical Name: SUMIDA CDRH62BNP-7R1NC-B SMD Power Inductor
Subcategory: SMD Power Inductor

CDRH62BNP-7R1NC-B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CDRH62BNP-7R1NC-B Features

  • Shielded ferrite drum core construction.
  • 7.1µH inductance with -20%/+40% tolerance.
  • Rated for 1.22A DC current.
  • Compact 6.9x6.5x3.0mm SMD package.
  • Operates from -40°C to +100°C.

CDRH62BNP-7R1NC-B Applications

  • Ideal for DC-DC converters.
  • Used in Notebook PCs.
  • Suitable for LCD TVs.
  • Applicable in Game machines.
  • Designed for HDD and DSC/DVC.

CDRH62BNP-7R1NC-B FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance value of the CDRH62BNP-7R1NC-B?

The inductance value is 7.1 µH.

What is the rated current for this inductor?

The rated current is 1.22 A.

What is the DC resistance (DCR) of the CDRH62BNP-7R1NC-B?

The maximum DC resistance is 0.11 Ω at 20℃.

What are the operating temperature limits for this inductor?

The operating temperature range is -40°C to +100°C.

What are the dimensions of the CDRH62BNP-7R1NC-B?

The dimensions are 6.9mm x 6.5mm x 3.0mm Max.

How is the CDRH62BNP-7R1NC-B packaged?

It is packaged in carrier tape and reel with 2000 pieces per reel.
