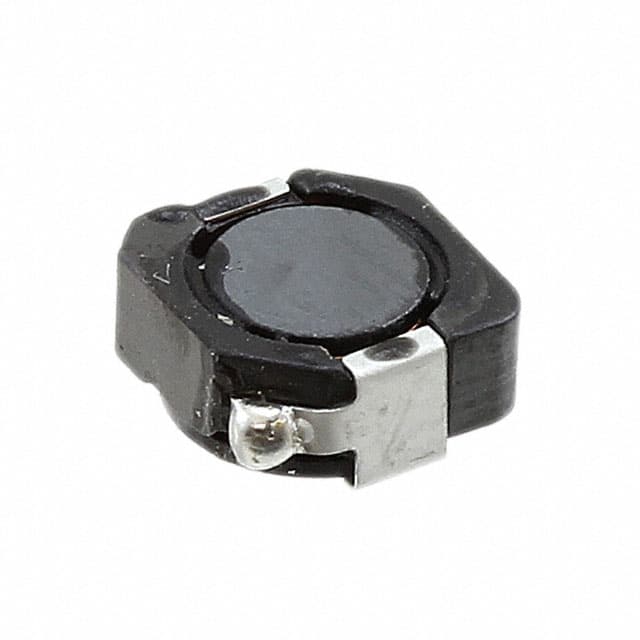

The SUMIDA CORP CDRH5D28RHPNP-4R7NC is a shielded SMD power inductor from the CDRH5D28R/HP series. It features a ferrite drum core construction with magnetic shielding, making it suitable for DC-DC converter applications in consumer electronics such as notebook PCs, HDDs, and LCD TVs.
Electrical characteristics include a nominal inductance of 4.7 µH at 100 kHz (±25% tolerance). The DC resistance is typically 34.5 mΩ with a maximum of 43.1 mΩ. The inductor can handle a saturation current of 3.7 A and a temperature rise current of 2.8 A (for a 40°C rise). Operating temperature range is -40°C to +105°C, including self-heating.
The component is supplied in a nonstandard surface-mount package measuring 6.0 mm x 5.9 mm x 3.0 mm (max 6.3 mm x 6.2 mm x 3.0 mm). It is RoHS compliant and has an MSL of 1. Packaging is carrier tape and reel with 2000 pieces per 13-inch reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.18 | $1.18 |
| 10+ | $0.97 | $0.97 |
| 100+ | $0.80 | $0.80 |
| 250+ | $0.79 | $0.79 |
| 500+ | $0.74 | $0.74 |
| 1,000+ | $0.66 | $0.66 |
| 2,000+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.7 µH at 100 kHz, with ±25% tolerance.
Maximum 43.1 mΩ, typical 34.5 mΩ at 20°C.
Temperature rise current: 2.8 A (ΔT=40°C). Saturation current: 3.7 A (inductance drops to 65% of nominal).
-40°C to +105°C, including self-heating.
Nonstandard SMD package with dimensions 6.0 mm x 5.9 mm x 3.0 mm (max 6.3 mm x 6.2 mm x 3.0 mm).
Yes, it has magnetic shielding.
CDRH5D28R/HP series.
