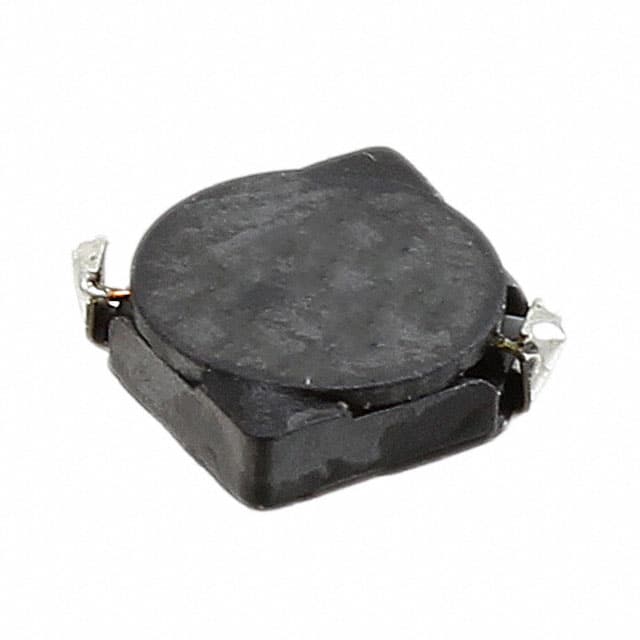

The CDRH5D18NP-470NC is a surface mount power inductor from Sumida Corporation, part of the CDRH5D18 series. It features a ferrite drum core construction and is magnetically shielded, making it suitable for DC-DC converter applications.
It has an inductance of 47 µH measured at 10 kHz, with a tolerance of ±30%. The DC resistance is 595 mΩ maximum (440 mΩ typical), and the rated current is 540 mA, defined as the current at which inductance drops to 65% of nominal or temperature rise reaches 30°C, whichever is lower.
The inductor measures 5.7 mm by 5.7 mm with a maximum height of 2.0 mm. It is supplied in tape and reel packaging with 2000 pieces per 13-inch reel. The operating temperature range is -40°C to +100°C including self-heating. It is RoHS compliant and has a moisture sensitivity level of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.69 | $0.69 |
| 10+ | $0.57 | $0.57 |
| 100+ | $0.47 | $0.47 |
| 500+ | $0.44 | $0.44 |
| 1,000+ | $0.39 | $0.39 |
| 2,000+ | $0.34 | $0.34 |
| 4,000+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
47 µH measured at 10 kHz.
540 mA at 20°C, based on inductance drop to 65% or 30°C temperature rise, whichever is lower.
595 mΩ maximum, 440 mΩ typical.
5.7 mm x 5.7 mm with height 2.0 mm maximum. Surface mount nonstandard package.
-40°C to +100°C including self-heating.
Yes, it is magnetically shielded.
Ferrite.
