| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Termination Style | |
| Test Frequency | |
| Tolerance | |
| Width |

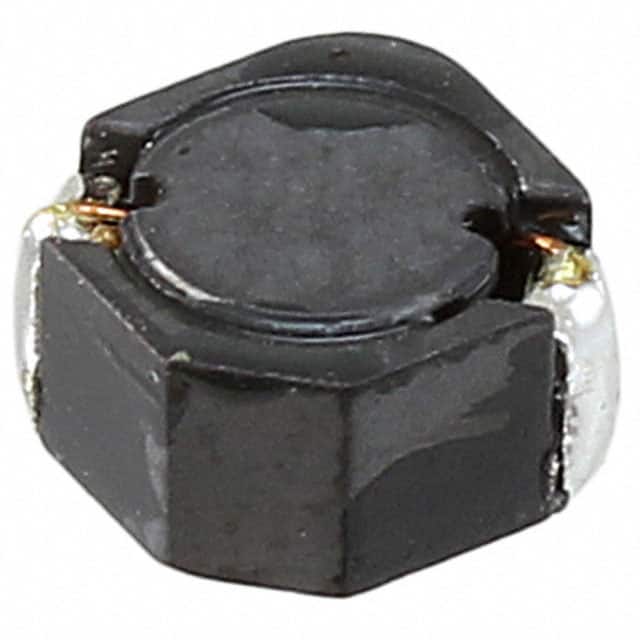

This Sumida CDRH4D28CNP-1R1PC is a shielded surface mount power inductor designed for DC-DC converter applications. It utilizes a ferrite drum core construction and offers a nominal inductance of 1.1µH with a tolerance of ±25%, measured at 100kHz.
The inductor is rated for a maximum DC current of 3.8A, with a maximum DC resistance (DCR) of 22mΩ at 20°C. It can operate across a wide temperature range of -40°C to +105°C, including coil self-temperature rise. The component has a magnetically shielded design and comes in a nonstandard package measuring 5.1mm x 5.1mm x 3.0mm.
Applications for this inductor include mobile phones, PDAs, MP3 players, HDDs, DSC/DVCs, and notebook PCs. It is supplied in carrier tape and reel packaging, with 2000 pieces per reel. The product is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 1.1 microhenry at 100kHz.
The maximum rated current is 3.8A.
The maximum DC resistance is 22 milliohms at 20°C.
The dimensions are 5.1mm in length and width, and 3.0mm in height.
Yes, it is shielded with a ferrite core.
It uses surface mount (SMD/SMT) mounting style.
Yes, it is RoHS3 compliant.
