| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tolerance | |
| Width |

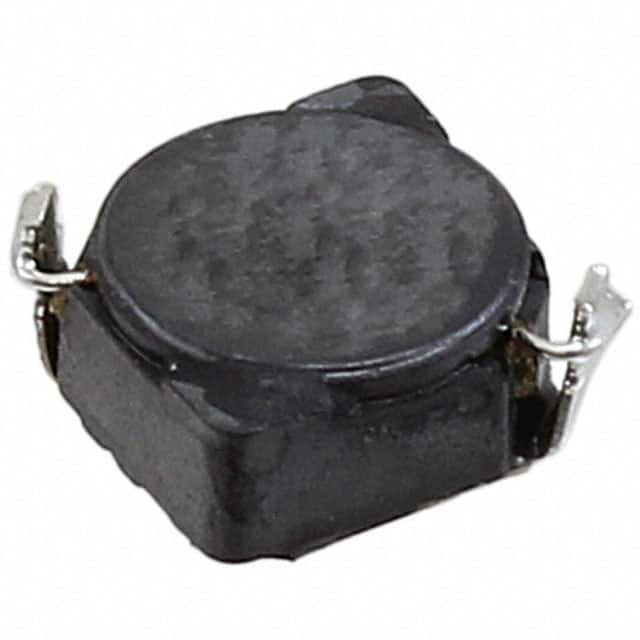

The Sumida CDRH4D22NP-151NC is a shielded SMD power inductor featuring a ferrite drum core construction. It is designed for DC-DC converter applications and is ideally used in devices such as mobile phones, PDAs, MP3 players, HDDs, DSC/DVCs, and portable computers.
This inductor has an inductance value of 150 µH with a tolerance of ±30% and a DC resistance (DCR) of 1.35 Ohm maximum at 20℃. It has a current rating of 470 mA and a saturation current of 0.68 A. The operating temperature range is -40℃ to +100℃.
The component measures 5.0mm x 5.0mm with a maximum height of 2.40mm. It is supplied in carrier tape and reel packaging with 2000 pieces per reel.
Key electrical characteristics include a saturation current of 0.68A and a temperature rise current of 0.50A at 20℃. The inductance is measured at 100kHz.
The inductance is 150 µH ±30% at 100kHz.
The DC resistance is a maximum of 1.35 Ohm at 20℃.
The current rating is 470 mA.
The dimensions are 5.0mm x 5.0mm with a maximum height of 2.40mm.
The operating temperature range is -40°C to +100°C.
It is supplied in carrier tape and reel packaging with 2000 pieces per reel.
