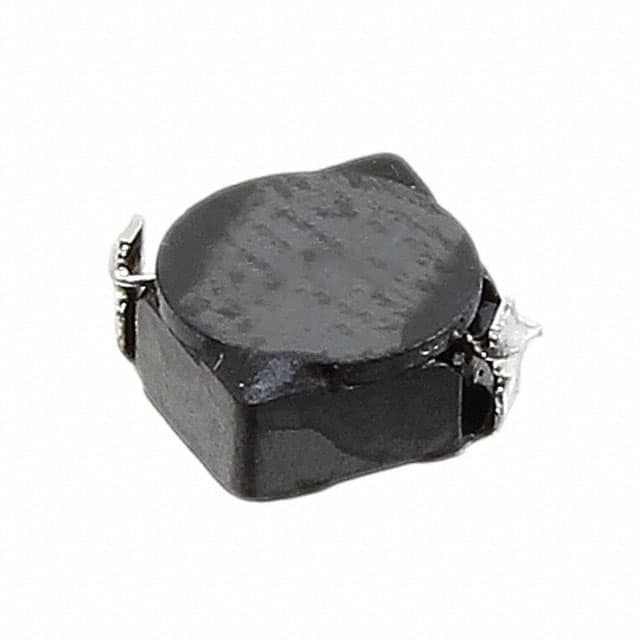

The CDRH4D22HPNP-100MC is a shielded surface mount power inductor from Sumida Corporation, part of the CDRH4D22/HP series. It offers a nominal inductance of 10 µH (±20%) measured at 100 kHz. The inductor is rated for a temperature rise current of 1.3 A at 20°C (ΔT=40°C) and a saturation current of 1.5 A (inductance drops to 65%). The maximum DC resistance is 143.8 mΩ at 20°C.
The component uses a ferrite drum core construction with magnetic shielding, making it suitable for DC-DC converter applications in portable electronics such as mobile phones, PDAs, MP3 players, HDDs, DSC/DVCs, and notebook computers. It is designed for surface mount assembly with a nonstandard package footprint of 5.0×5.0×2.4 mm max (L×W×H).
The inductor operates over a temperature range of -40°C to +100°C (including self-heating) and is compatible with reflow soldering at 260°C peak. It is supplied in tape-and-reel packaging with 2000 pieces per 12.9" reel. The device is moisture sensitivity level 1 and meets RoHS compliance.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
| 10+ | $0.64 | $0.64 |
| 100+ | $0.53 | $0.53 |
| 500+ | $0.51 | $0.51 |
| 1,000+ | $0.44 | $0.44 |
| 2,000+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 µH measured at 100 kHz test frequency, with ±20% tolerance.
Temperature rise current is 1.3 A at 20°C (ΔT=40°C); saturation current is 1.5 A (inductance drops to 65% of nominal).
143.8 mΩ maximum at 20°C.
Surface mount, nonstandard package, maximum dimensions 5.0×5.0×2.4 mm (L×W×H).
Yes, it is magnetically shielded with a ferrite core.
−40°C to +100°C, including coil self-temperature rise.
