| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| Current Rating (Saturation) (Nominal @ at 125 °C) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Type | |
| Ratings | |
| Reel Size | |
| Shielding | |
| Solder Reflow Temperature | |
| Standard Package Qty | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Weight | |
| Width |

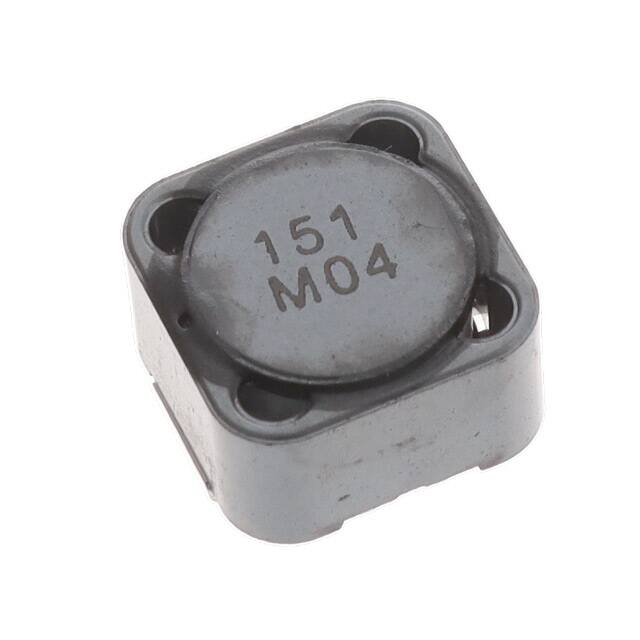

The CDRH127L125NP-151MC is a surface mount power inductor from Sumida Corporation, part of the CDRH127/L125 series. It features a ferrite drum core construction with magnetic shielding, making it suitable for applications requiring low electromagnetic interference. The inductor is qualified to AEC-Q200, ensuring reliability for automotive environments.
Key electrical specifications include an inductance of 150µH measured at 100kHz, with a tolerance of ±20%. The DC resistance is 236mOhm maximum (182mOhm typical). The saturation current is 2.1A at 20°C and 1.7A at 125°C, while the temperature rise current (ΔT=40°C) is 1.8A. The component operates over a temperature range of -40°C to +125°C and can withstand a peak solder reflow temperature of 260°C.
The inductor is packaged in a nonstandard SMD case measuring 12.0mm x 12.0mm x 8.0mm, with a weight of 4.1g. It is supplied in carrier tape and reel packaging with 500 pieces per 13-inch diameter reel. The part is RoHS compliant and has a Moisture Sensitivity Level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
| 10+ | $0.82 | $0.82 |
| 100+ | $0.67 | $0.67 |
| 500+ | $0.56 | $0.56 |
| 1,000+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 150 µH, measured at 100 kHz.
The temperature rise current (ΔT=40°C) is 1.8 A. The saturation current is 2.1 A at 20°C and 1.7 A at 125°C.
Maximum DCR is 236 mOhm; typical DCR is 182 mOhm at 20°C.
The inductor is surface mount in a nonstandard package measuring 12.0 mm x 12.0 mm x 8.0 mm.
Yes, it is magnetically shielded.
The operating temperature range is -40°C to +125°C, including self-heating.
Yes, it is qualified to AEC-Q200.
