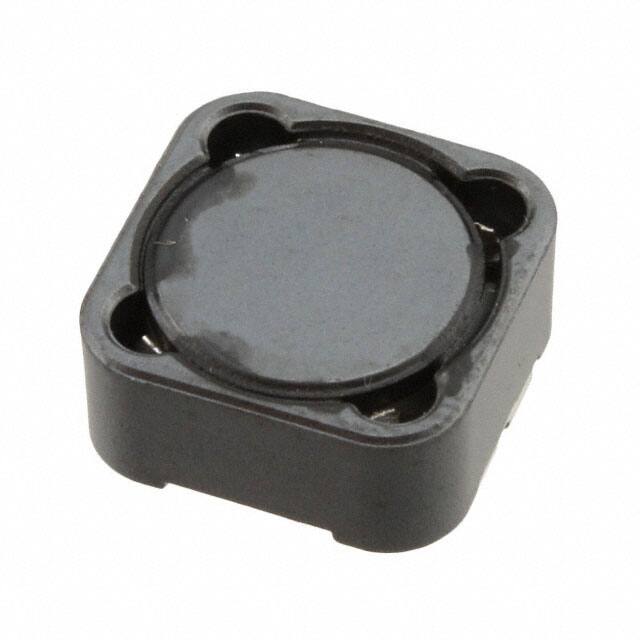

The CDRH125/LDNP-220MC is a shielded SMD power inductor from Sumida, part of the CDRH125/LD series. It features a ferrite drum core construction with magnetic shielding, providing an inductance of 22 µH with ±20% tolerance.
This inductor is rated for a continuous current of 3.28 A, with a maximum DC resistance of 44 mOhm. Typical saturation current is 4.2 A (inductance drops 25%), and typical temperature rise current is 4.5 A. The device operates over a temperature range of -40°C to +100°C, including the coil's self-temperature rise.
Packaged in a nonstandard surface mount package with dimensions 12.00 mm x 12.00 mm x 6.00 mm, it is suitable for high-density PCB designs. The component is supplied in carrier tape and reel packaging with 500 pieces per 13-inch reel. It is RoHS compliant and has a moisture sensitivity level of 1 (unlimited).
Typical applications include DC-DC converter inductors in notebook PCs, LCD TVs, DVD players, game machines, set-top boxes, and projectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.10 | $1.10 |
| 10+ | $0.90 | $0.90 |
| 100+ | $0.74 | $0.74 |
| 500+ | $0.60 | $0.60 |
| 1,000+ | $0.57 | $0.57 |
| 1,500+ | $0.55 | $0.55 |
| 2,500+ | $0.53 | $0.53 |
| 3,500+ | $0.51 | $0.51 |
| 5,000+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 µH with ±20% tolerance.
3.28 A.
44 mOhm maximum.
Nonstandard surface mount package, 12.00mm x 12.00mm x 6.00mm.
Yes, it is magnetically shielded.
-40°C to +100°C including coil's self-temperature rise.
4.2 A typical (inductance drops 25%).
