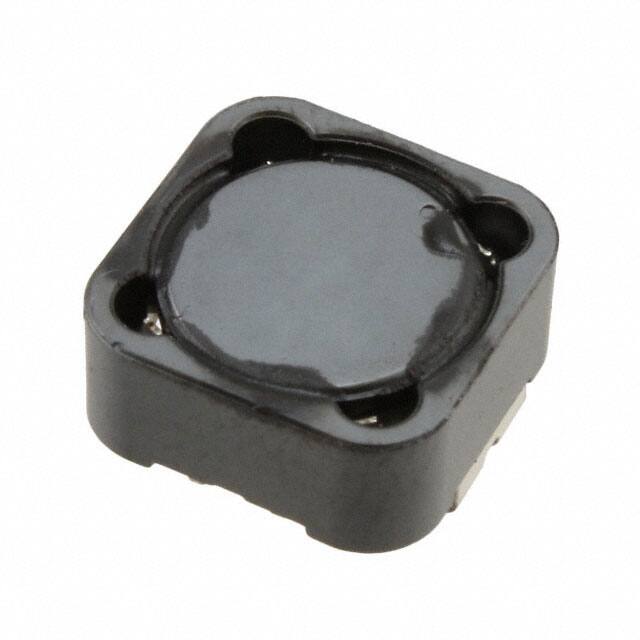

The CDRH125/LDNP-150MC is a shielded SMD power inductor from Sumida, part of the CDRH125/LD series. It features a ferrite drum core construction and is magnetically shielded for reduced EMI. The inductor provides an inductance of 15µH with a tolerance of ±20%.
Key electrical specifications include a maximum DC resistance of 35mOhm and a rated current of 4A maximum. The saturation current is 4A maximum (typical 5A), and the temperature rise current is also 4A maximum (typical 5A). The operating temperature range is -40°C to +100°C, including coil self-temperature rise.
Mechanically, the inductor measures 12.3mm x 12.3mm x 6.0mm maximum and weighs 2.9 grams. It is designed for surface mount and is packaged in tape and reel format with 500 pieces per 13-inch reel. The component is RoHS compliant and has a moisture sensitivity level of 1.
Typical applications include DC-DC converters in notebook PCs, LCD TVs, DVD players, game consoles, set-top boxes, and projectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.10 | $1.10 |
| 10+ | $0.90 | $0.90 |
| 100+ | $0.74 | $0.74 |
| 500+ | $0.60 | $0.60 |
| 1,000+ | $0.57 | $0.57 |
| 1,500+ | $0.55 | $0.55 |
| 2,500+ | $0.53 | $0.53 |
| 3,500+ | $0.51 | $0.51 |
| 5,000+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 15 µH with a tolerance of ±20%.
The maximum DC resistance is 35 mOhm.
The maximum rated current is 4 A for both saturation and temperature rise conditions.
The package dimensions are 12.3 mm x 12.3 mm x 6.0 mm maximum.
Yes, it is magnetically shielded.
The operating temperature range is -40°C to +100°C, including coil self-temperature rise.
The inductor is supplied in tape and reel packaging, 500 pieces per 13-inch diameter reel.
