| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
355 pcs
|
355 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| Current Rating (Maximum) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Shielding | |
| Storage Temperature (Minimum/Maximum) | |
| Termination Style | |
| Test Frequency | |
| Tolerance | |
| Width | |
| dcr (Maximum @ 20 ℃) | |
| dcr (Maximum) |

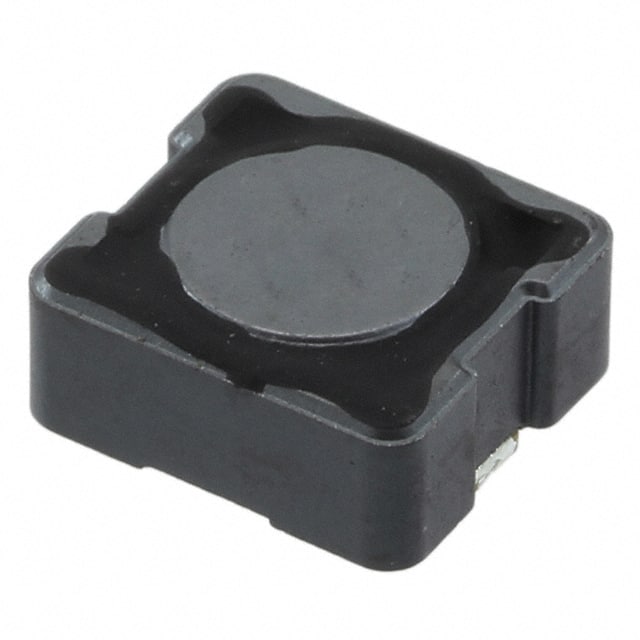

The Sumida CDRH104NP-471MC is a shielded surface-mount fixed inductor designed for DC-DC converter applications. It offers an inductance value of 470µH with a tolerance of ±20% and a maximum DC current rating of 360mA. The inductor has a low DC resistance of 1.74 Ohms.
This component features a magnetically shielded construction, making it suitable for applications where electromagnetic interference needs to be minimized. The operating temperature range is from -40°C to 100°C, including the coil's self-temperature rise. Its dimensions are 10.1mm x 9.2mm with a maximum height of 5.0mm.
Ideally used in devices such as Notebook PCs, LCD TVs, DVD players, game machines, Set-Top Boxes (STBs), and projectors, the CDRH104NP-471MC is designed for reliable performance in power supply circuits. It is RoHS compliant.
The CDRH104NP-471MC is packaged in cut tape and is designed for PCB mounting.
The inductance of the CDRH104NP-471MC is 470µH.
The rated current for the CDRH104NP-471MC is 360mA.
The maximum DC resistance (DCR) for the CDRH104NP-471MC is 1.74 Ohms.
The operating temperature range is -40°C to 100°C.
The dimensions are 10.1mm x 9.2mm with a maximum height of 5.0mm.
Yes, the CDRH104NP-471MC is RoHS compliant.
