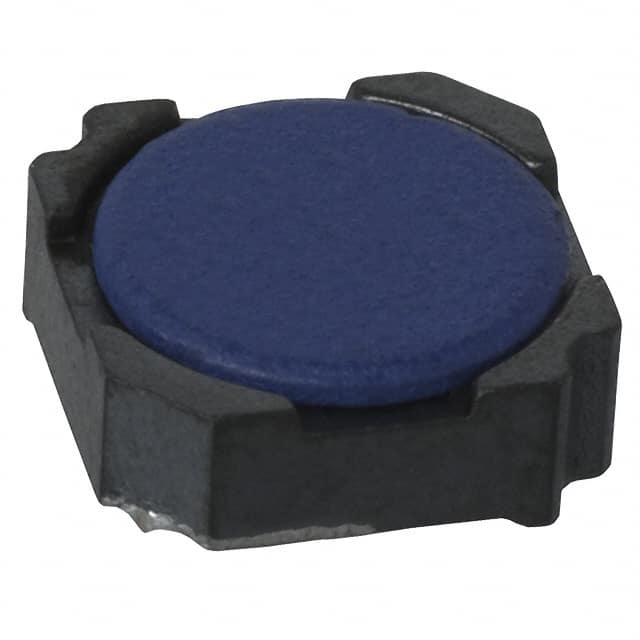

CDR7D28MNNP-8R0NC The Sumida Corp CDR7D28MNNP-8R0NC is a shielded, surface mount fixed inductor with a nominal inductance of 8µH and a current rating of 2.6A. It features a low DC resistance of 50mΩ max.
Mfr Part #:

CDR7D28MNNP-8R0NC

Available from 1 distributors
Mfr Name: SUMIDA CORP
SUMIDA CORP
The Sumida Corp CDR7D28MNNP-8R0NC is a shielded, surface mount fixed inductor with a nominal inductance of 8µH and a current rating of 2.6A. It features a low DC resistance of 50mΩ max.
✓ Total Stock: 75 pcs

CDR7D28MNNP-8R0NC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
75 pcs
On Request
75 pcs On Request 1 On Request On Request 610 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CDR7D28MNNP-8R0NC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tape & Reel
Tolerance
Width
View Similar Products (0)

CDR7D28MNNP-8R0NC Description

Short technical summary and product information.

This SMD power inductor from Sumida Corp, part number CDR7D28MNNP-8R0NC, is designed for applications requiring reliable inductance. It offers a nominal inductance of 8µH with a tolerance of ±25% and a saturation current of 2.10A.



The inductor has a shielded ferrite drum core construction and a compact size with maximum dimensions of 7.6mm x 7.6mm x 3.0mm. The operating temperature range is -40°C to +105°C, making it suitable for various environmental conditions.



With a DC resistance of 50mΩ maximum at 20°C and a temperature rise current of 2.60A, this component is built for efficient power management. It is supplied in carrier tape and reel packaging, ideal for automated assembly processes.



Applications include LCD drivers, DSC/DVC, Notebook PCs, and other portable equipment where space and performance are critical.

CDR7D28MNNP-8R0NC Quick Information

Product Type: Fixed Inductor
Series: CDR7D28MN
Canonical Name: SMD Power Inductor CDR7D28MN
Subcategory: SMD Power Inductor

CDR7D28MNNP-8R0NC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected

CDR7D28MNNP-8R0NC Features

  • Shielded ferrite drum core construction.
  • Nominal inductance of 8µH with ±25% tolerance.
  • Rated for 2.6A saturation current.
  • Low DC resistance of 50mΩ max.
  • Compact 7.6x7.6x3.0mm SMD package.

CDR7D28MNNP-8R0NC Applications

  • Ideally used in LCD driver circuits.
  • Suitable for DSC/DVC applications.
  • Designed for Notebook PC power.
  • Used in other portable equipment.

CDR7D28MNNP-8R0NC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the CDR7D28MNNP-8R0NC?

The nominal inductance is 8µH with a tolerance of ±25%.

What is the DC resistance (DCR) of this inductor?

The maximum DC resistance is 50mΩ at 20°C.

What is the current rating for the CDR7D28MNNP-8R0NC?

The saturation current is 2.10A, and the temperature rise current is 2.60A at 20°C.

What are the operating and storage temperature ranges?

The operating temperature range is -40°C to +105°C, and the storage temperature range is also -40°C to +105°C.

What are the physical dimensions of this inductor?

The maximum dimensions are 7.6mm in length, 7.6mm in width, and 3.0mm in height.

How is the CDR7D28MNNP-8R0NC packaged?

It is supplied in carrier tape and reel packaging on a 12.9-inch diameter reel, with 1000 pieces per reel.

Is this inductor RoHS compliant?

Yes, this inductor is RoHS3 compliant.
