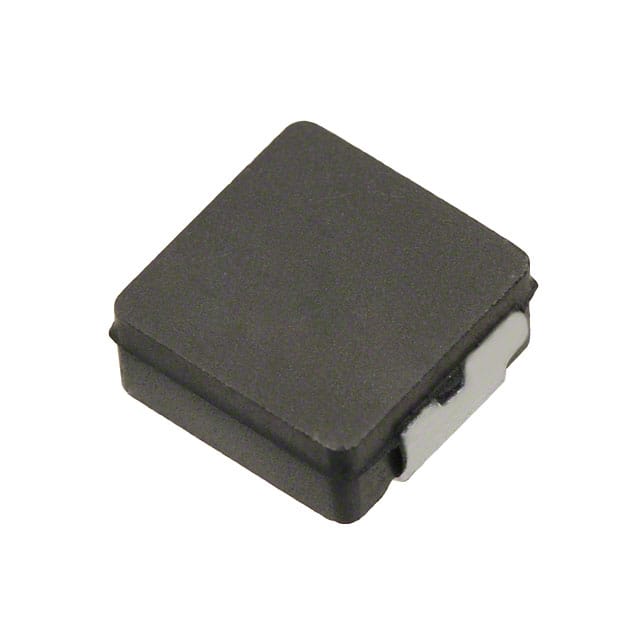

CDMC6D28NP-2R2MC Shielded SMD power inductor from Sumida, 2.2 µH inductance, 6 A saturation current, 19.3 mΩ maximum DCR.
Mfr Part #:

CDMC6D28NP-2R2MC

Available from 1 distributors
Mfr Name: SUMIDA CORP
SUMIDA CORP
Shielded SMD power inductor from Sumida, 2.2 µH inductance, 6 A saturation current, 19.3 mΩ maximum DCR.
✓ Total Stock: 13,341 pcs
$ Price Range: $0.50 - $0.89

CDMC6D28NP-2R2MC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
13,341 pcs
On Request
13341 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CDMC6D28NP-2R2MC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Industrial Grade
Length
Material
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Shielding
Storage Temperature
Tape & Reel
Termination Style
Tolerance
Weight
Width
View Similar Products (0)

CDMC6D28NP-2R2MC Description

Short technical summary and product information.

This is a shielded SMD power inductor from Sumida's CDMC6D28 series. It features a metal composite core construction and is designed for low voltage, high current applications such as laptop and server power supplies.



Electrical specifications include 2.2 µH inductance at 1 MHz, ±20% tolerance, maximum DC resistance of 19.3 mΩ (typical 16.1 mΩ), minimum saturation current of 6.0 A (typical 7.6 A) when inductance drops to 80%, and minimum temperature rise current of 6.0 A (typical 6.8 A) for a 40°C rise.



The inductor is magnetically shielded and operates over -40°C to +125°C including self-heating. It is packaged in a nonstandard case measuring 7.25 mm x 6.5 mm x 3.0 mm maximum. It is supplied in tape and reel packaging with 1000 pieces per 11.8-inch reel.



The component is RoHS compliant and has MSL 1 (unlimited). It is suitable for surface mount assembly with a peak reflow temperature of 260°C.

CDMC6D28NP-2R2MC Quick Information

Product Type: Fixed Inductor
Series: CDMC6D28
Canonical Name: Sumida CDMC6D28NP-2R2MC Shielded SMD Power Inductor
Subcategory: Shielded SMD Inductor

CDMC6D28NP-2R2MC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

CDMC6D28NP-2R2MC Estimated Pricing

Qty Low High
1+ $0.89 $0.89
10+ $0.73 $0.73
100+ $0.60 $0.60
500+ $0.59 $0.59
1,000+ $0.51 $0.51
2,000+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

CDMC6D28NP-2R2MC Features

  • Shielded metal composite core construction.
  • 2.2 µH inductance with ±20% tolerance.
  • 6.0 A minimum saturation current rating.
  • 19.3 mΩ maximum DC resistance.
  • Surface mount package, 7.25 mm x 6.5 mm.

CDMC6D28NP-2R2MC Applications

  • Ideal for laptop power supply circuits.
  • Suitable for server voltage regulator modules.
  • Used in low-voltage high-current DC-DC converters.

CDMC6D28NP-2R2MC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value?

2.2 µH at 1 MHz, ±20% tolerance.

What is the saturation current?

Minimum 6.0 A at 20°C when inductance drops to 80% of nominal.

What is the DC resistance?

Maximum 19.3 mΩ at 20°C, typical 16.1 mΩ.

What is the package size?

Nonstandard SMD package, 7.25 mm x 6.5 mm x 3.0 mm maximum.

Is this inductor shielded?

Yes, it is magnetically shielded.

What is the operating temperature range?

-40°C to +125°C including self-heating.

What is the mounting type?

Surface mount.
