| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,500 pcs
|
18500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Voltage | |
| Impedance (Max) (Zzt) | |
| Impedance (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Power | |
| Power Dissipation | |
| Reverse Leakage Current | |
| Supplier Device Package | |
| Tolerance | |
| Voltage | |
| Zener Voltage | |
| Zener Voltage Tolerance |
The CDLL967B is a single Zener diode from Microchip Technology with a nominal Zener voltage of 18V and a tolerance of ±5%. It is rated for 500mW power dissipation. The maximum impedance (Zzt) at the test current is 21Ω. Forward voltage is 1.1V at 200mA, and reverse leakage current is 500nA at 14V. The device operates over a temperature range of -65°C to 175°C.

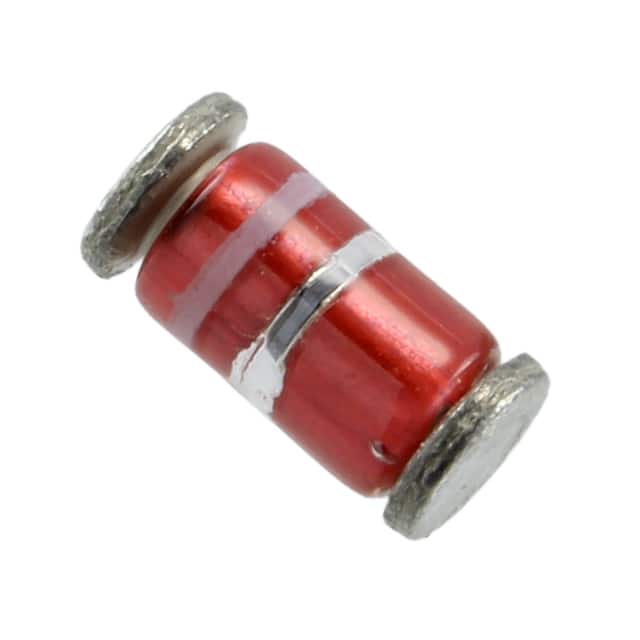

The CDLL967B is housed in a DO-213AB (MELF) surface mount package, which is suitable for automated assembly and provides good thermal performance. The part is designed for general purpose voltage regulation, reference, and clamping applications in a variety of electronic circuits.
As a surface mount Zener diode, the CDLL967B is appropriate for use in power supplies, voltage reference circuits, and protection circuits where a stable 18V reference is required. The DO-213AB package is compatible with standard SMD soldering processes.
The Zener voltage is 18V nominal.
The tolerance is ±5%.
The power dissipation is 500mW.
The maximum impedance (Zzt) is 21Ω.
The forward voltage is 1.1V at 200mA.
The CDLL967B is available in a DO-213AB (MELF) surface mount package.
The operating temperature range is -65°C to 175°C.
