| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

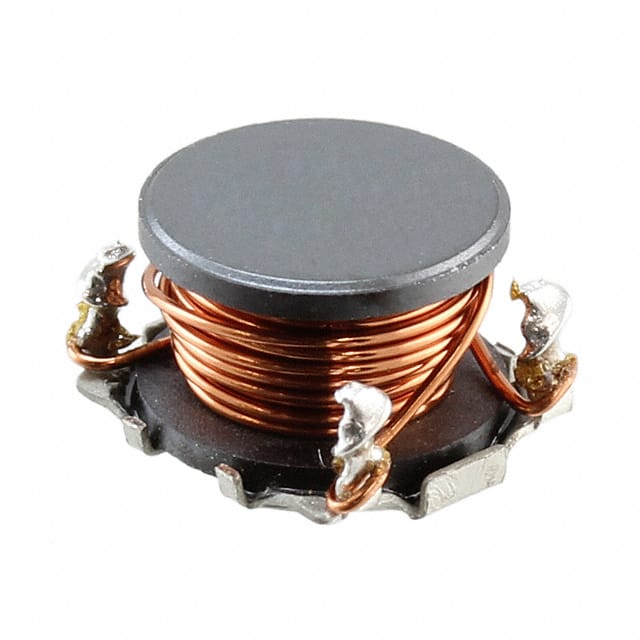

This CDH74NP-220LC power inductor from SUMIDA CORP features a ferrite drum core construction and is magnetically unshielded. It provides an inductance value of 22 µH with a tolerance of ±15% and a maximum DC resistance of 130mΩ at 20°C. The rated current is 1.7A.
Designed for surface mounting, this inductor has dimensions of 8.0 x 7.3 x 5.2 mm. It operates within a temperature range of -40°C to +100°C. The component is supplied in carrier tape and reel packaging, with 1000 pieces per reel.
Applications for this inductor include DC-DC converters in devices such as notebook PCs, projectors, LCD TVs, and game machines.
The inductance value is 22 µH.
The rated current is 1.7A.
The maximum DC resistance is 130mΩ.
The operating temperature range is -40°C to +100°C.
The dimensions are 8.0mm x 7.3mm x 5.2mm.
It is supplied in carrier tape and reel packaging with 1000 pieces per reel.
It uses a ferrite drum core.
