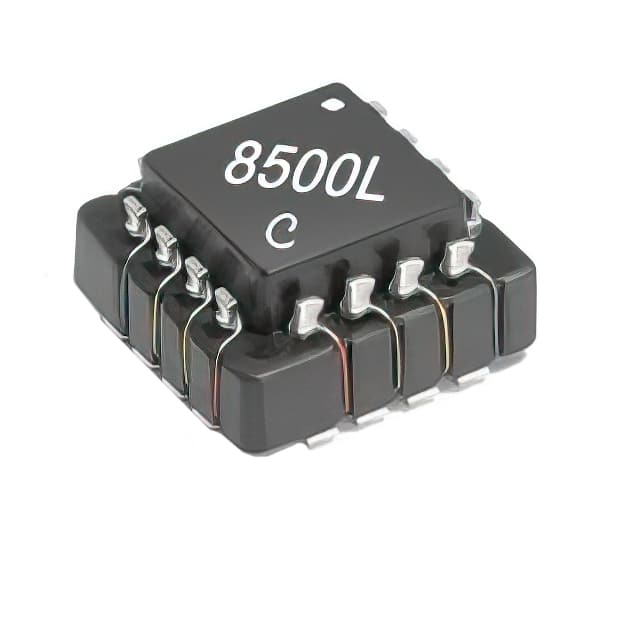

CDF8500LD is an 8-line common mode choke from Coilcraft designed for signal line filtering. It provides 5µH inductance at 1MHz and 520Ω impedance at 42MHz, with a maximum current rating of 500mA and a maximum DC resistance of 180mΩ. The filter supports up to 8 separate lines.
The device is housed in a 16-BQFN surface mount package with dimensions of 8.00mm x 8.00mm and a maximum height of 4.50mm. It operates over a temperature range of -40°C to +85°C, making it suitable for a variety of environmental conditions. The mounting type is surface mount, suitable for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.49 | $5.49 |
| 10+ | $4.59 | $4.59 |
| 25+ | $4.19 | $4.19 |
| 50+ | $3.59 | $3.59 |
| 100+ | $3.29 | $3.29 |
| 250+ | $3.19 | $3.19 |
| 500+ | $2.99 | $2.99 |
| 1,000+ | $2.89 | $2.89 |
| 2,000+ | $2.79 | $2.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to +85°C.
The CDF8500LD is available in a 16-BQFN surface mount package.
Yes, it is listed as RoHS3 compliant in the source data.
The inductance is 5µH at 1MHz.
The impedance is 520Ω at 42MHz.
The maximum current rating is 500mA.
The CDF8500LD supports 8 lines.
