| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
865 pcs
|
865 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Reel Diameter | |
| Shielding | |
| Standard Package Quantity | |
| Tape & Reel | |
| Tape and Reel | |
| Temperature Rise Current | |
| Tolerance | |
| Type | |
| Width |

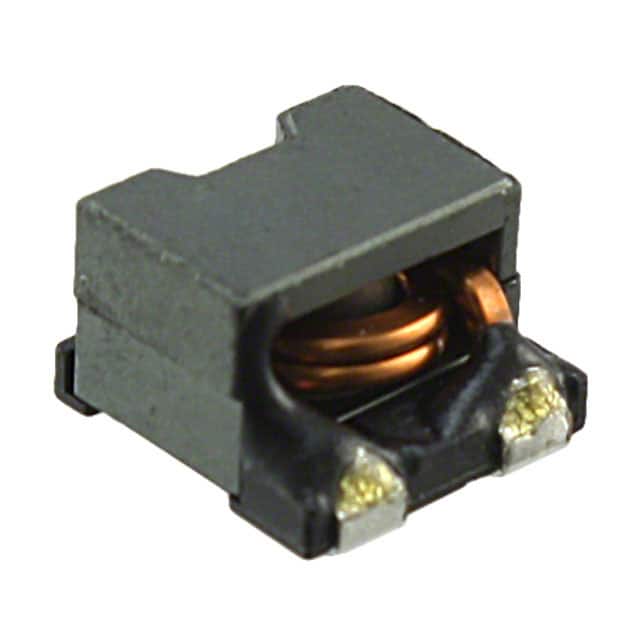

This CDEP85NP-R20MC-50 SMD power inductor from SUMIDA CORP features a ferrite core construction and magnetic shielding. It has an inductance of 200nH with a ±20% tolerance, measured at 100 kHz. The inductor is designed for surface mounting and has a compact size with dimensions of 8.00mm x 8.00mm x 5.50mm.
With a high current rating of 18A and a low DC resistance of 2.5mOhm (Max.), this component is suitable for demanding power supply applications. It operates within a temperature range of -40°C to +125°C. The inductor is supplied in carrier tape and reel packaging, with 1000 pieces per reel.
Ideally used in portable computer CPU power supplies, this component offers reliable performance in various electronic designs. Its shielded construction helps minimize electromagnetic interference.
The inductance of the CDEP85NP-R20MC-50 is 200 nH with a tolerance of ±20%.
This inductor has a saturation current rating of 32A and a temperature rise current rating of 18A.
The maximum DC resistance (DCR) for this component is 2.5 mΩ.
The operating temperature range is -40°C to +125°C.
This inductor is supplied in carrier tape and reel packaging with 1000 pieces per reel.
