| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,513 pcs
|
1513 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Saturation Current | |
| Shielding | |
| Temperature Rise Current | |
| Tolerance | |
| Width |

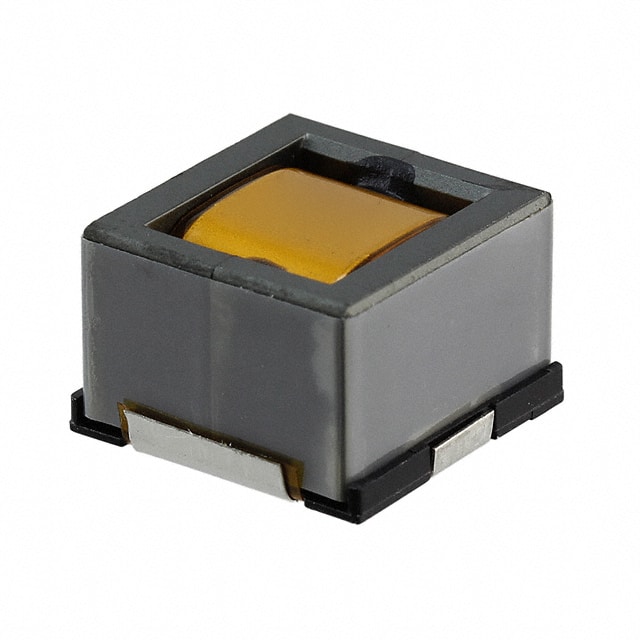

The CDEP149NP-1R8MC-H is a surface-mount fixed inductor manufactured by SUMIDA CORP. It provides a nominal inductance of 1.8 microhenries at 100kHz with a tolerance of ±20%. The inductor has a maximum DC resistance of 2.3 milliohms and can handle a saturation current of 20A, which decreases the inductance to 75% of its nominal value at high current levels. It is rated for a temperature rise current of 28A at a 40°C temperature increase.
This component is designed for use in power supply filtering, DC-DC converters, and other electronic circuits requiring stable inductance and high current handling. Its surface-mount package allows for easy integration into compact circuit designs. The inductor's electrical characteristics make it suitable for applications demanding high current and low resistance, ensuring efficient energy transfer and minimal heat generation.
The inductance value is 1.8 microhenries at 100kHz.
The maximum DCR is 2.3 milliohms.
The saturation current is 20A.
The rated current is 28A.
