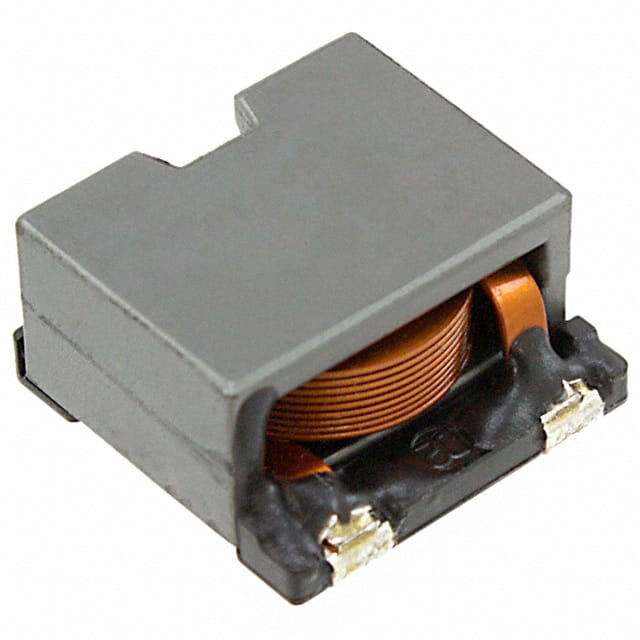

The CDEP147NP-4R7MC-73 from Sumida is a shielded drum core wirewound inductor designed for power applications. It offers 4.7 µH inductance (measured at 100 kHz) with ±20% tolerance. The inductor is rated for 11 A typical temperature rise current (Δt=40°C at 20°C) and has a saturation current of 17.6 A typical (inductance drops to 75% of nominal). Maximum DC resistance is 7.8 mOhm at 20°C.
The ferrite core construction provides magnetic shielding, reducing EMI. The component operates over -40°C to +125°C temperature range. It is surface mountable in a nonstandard package with dimensions 14.50 mm length, 14.50 mm width, and 8.00 mm height. Packaging is tape and reel on a 13.0" diameter reel with 300 pieces per reel. The inductor is RoHS3 compliant and has MSL 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.67 | $1.67 |
| 10+ | $1.38 | $1.38 |
| 100+ | $1.13 | $1.13 |
| 300+ | $0.99 | $0.99 |
| 600+ | $0.92 | $0.92 |
| 4,800+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.7 µH, measured at 100 kHz.
11 A typical temperature rise current (Δt=40°C at 20°C). Saturation current is 17.6 A typical.
7.8 mOhm maximum at 20°C.
Nonstandard surface mount package, dimensions 14.50 mm x 14.50 mm x 8.00 mm. Supplied in tape and reel (300 pcs/reel).
-40°C to +125°C including coil self temperature rise.
Yes, magnetically shielded with ferrite core.
Yes, RoHS3 compliant. Moisture sensitivity level 1 (unlimited).
