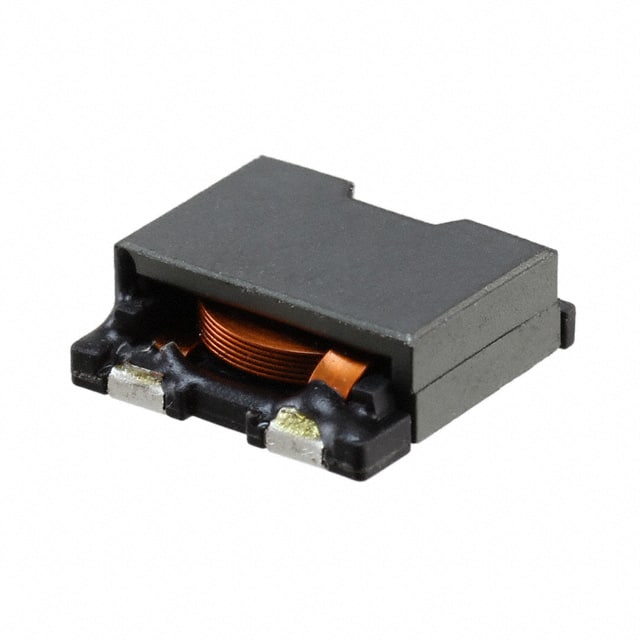

The CDEP134NP-3R6MC-H is a drum core, wirewound power inductor with ferrite core and magnetic shielding. It is designed for high current applications such as notebook PC CPU power supplies.
Electrical specifications include 3.6µH inductance ±20%, maximum DCR of 12mOhm (typical 10mOhm), saturation current of 12.5A (at 75% inductance drop), and temperature rise current of 7.5A (ΔT=40°C). Operating temperature range is -40°C to 125°C.
The inductor is supplied in a surface mount package measuring 13.5mm x 13.5mm x 5.0mm. It is RoHS compliant and packaged in tape and reel with 500 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.41 | $2.41 |
| 10+ | $1.99 | $1.99 |
| 100+ | $1.64 | $1.64 |
| 500+ | $1.37 | $1.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 3.6 µH with a tolerance of ±20%.
The temperature rise current (ΔT=40°C) is 7.5 A, and the saturation current is 12.5 A.
The maximum DCR is 12 mOhm, with a typical value of 10 mOhm at 20°C.
The package is nonstandard SMD with dimensions 13.5mm x 13.5mm x 5.0mm.
Yes, it is magnetically shielded.
The operating temperature range is -40°C to 125°C, including the coil's self temperature rise.
The core material is ferrite.
