| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,950 pcs
|
2950 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 13.0”diameter reel | |
| 500pcs per reel | |
| Carrier tape and reel packaging | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Temperature Rise Current (Maximum @ △T=40℃ (at 100℃) | |
| Temperature Rise Current (Maximum @ △T=40℃ (at 20℃) | |
| Tolerance | |
| Type | |
| Width |

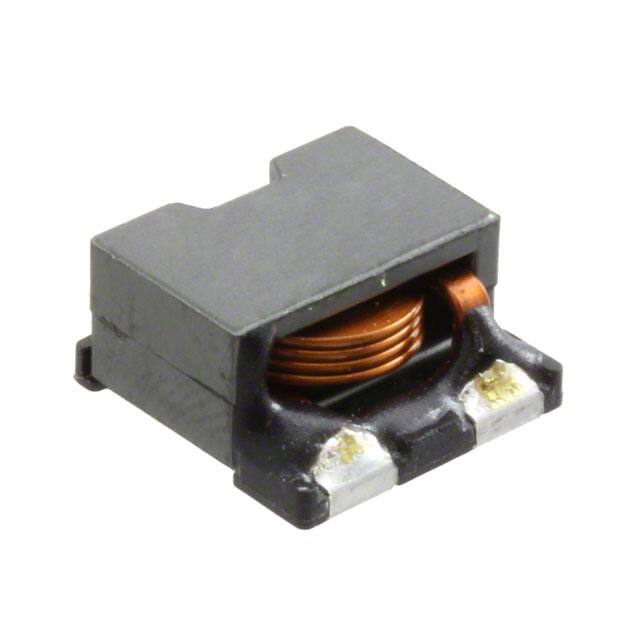

This SUMIDA CORP CDEP105NP-1R3MC-50 is a shielded SMD power inductor from the CDEP105 series. It features a ferrite core construction and is designed for surface mounting.
Key electrical specifications include an inductance of 1.3 µH with a ±20% tolerance, a maximum DC resistance of 5.3 mΩ at 20°C, and a saturation current of 16.8 A. The temperature rise current is rated at 11.2 A for a 40°C rise at 20°C and 9.0 A for a 40°C rise at 100°C.
The operating temperature range for this inductor is -40°C to 125°C. Its dimensions are 10.00mm in length and width, and 5.60mm in height. The inductor is supplied in carrier tape and reel packaging, with 500 pieces per 13-inch reel.
This component is ideally used in PC and other high current power supply applications.
The inductance value is 1.3 microhenries at 100kHz.
The maximum saturation current is 11.2A.
The DCR is 5.3 milliohms at 20°C.
It measures 10mm in length, 10mm in width, and 5.6mm in height.
Yes, it is shielded.
It uses surface mount technology.
