| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
485 pcs
|
485 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Carrier Type | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Product Weight | |
| Reel Diameter | |
| Shielding | |
| Solder Reflow Temperature | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Rise Current (Maximum @ Temperature rise is △t＝40℃ (Ta＝105℃) | |
| Temperature Rise Current (Maximum @ Temperature rise is △t＝40℃ (Ta＝20℃) | |
| Tolerance | |
| Width |

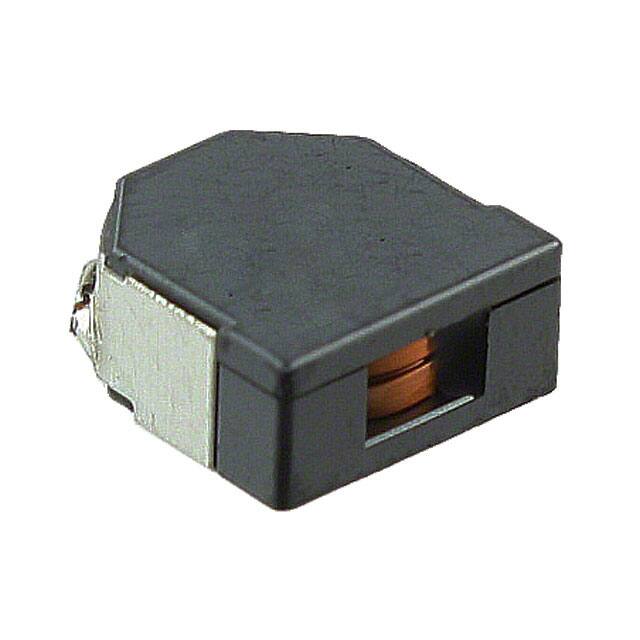

The CDEIR8D38FNP-100NC is a shielded SMD power inductor from Sumida Corporation. It features a ferrite core construction and a compact size with dimensions of 8.5 x 8.3 x 4.0 mm maximum.
This inductor provides a nominal inductance of 10 µH with a tolerance of ±30%, measured at 100kHz. It has a maximum DC resistance (DCR) of 43.8 mΩ at 20°C. The saturation current is rated at 4.6 A, and the temperature rise current is 3.8 A at 20°C and 3.4 A at 105°C.
Designed for operation within a temperature range of -40°C to +105°C, this component is suitable for applications requiring reliable performance under varying thermal conditions. The operating temperature range includes the coil's self-temperature rise.
Packaged in a carrier tape and reel with a 13.0-inch diameter reel, containing 1000 pieces per reel, this inductor is ideal for automated assembly processes. Its magnetically shielded design makes it suitable for use in devices like notebooks and PDAs where electromagnetic interference needs to be minimized.
The inductance is 10 µH.
The saturation current is 4.6 A.
The DC resistance is a maximum of 43.8 mΩ.
The operating temperature range is -40°C to +105°C.
It is supplied in tape and reel packaging with 1000 pieces per reel.
