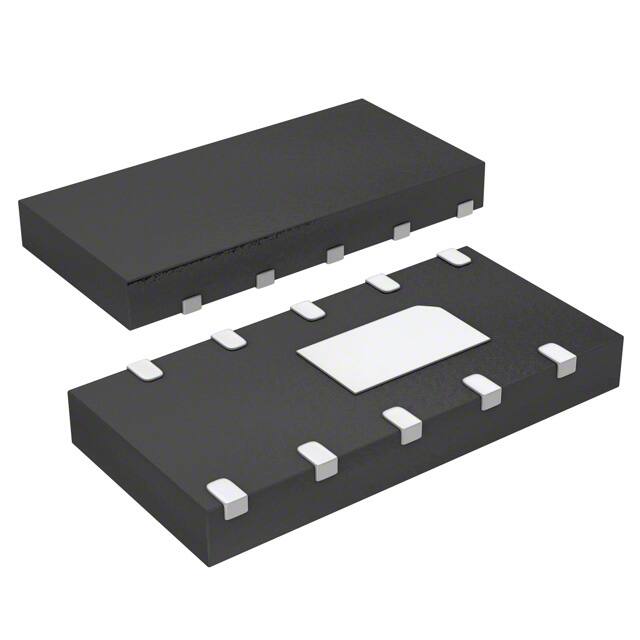

The Bourns CDDFN10-0506N is a transient voltage suppressor (TVS) diode array designed for ESD and EFT protection of high-speed data ports. It features six unidirectional channels in a rail-to-rail steering configuration, making it suitable for protecting multiple data lines in a single compact package.
Key electrical specifications include a working peak voltage of 5V (max), a minimum breakdown voltage of 6V at 1 mA, and a typical forward voltage of 0.8V at 15 mA. The device offers ultra-low channel capacitance of 0.25pF typical (0.35pF max) and channel-to-channel capacitance of 0.05pF typical (0.07pF max) at 2.5V and 1 MHz, ensuring signal integrity in high-speed applications.
The CDDFN10-0506N provides robust ESD protection per IEC 61000-4-2 with ±8kV contact discharge and ±15kV air discharge ratings. It can handle peak pulse currents up to 5.3A (8/20 µs waveform) with a peak pulse power of 40W. The device is housed in a 10-UDFN exposed pad package (supplier package 10-DFN 4.1x2mm) and is surface mount compatible for automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.25 | $1.25 |
| 10+ | $1.00 | $1.00 |
| 100+ | $0.77 | $0.77 |
| 500+ | $0.56 | $0.56 |
| 1,000+ | $0.51 | $0.51 |
| 3,000+ | $0.47 | $0.47 |
| 6,000+ | $0.44 | $0.44 |
| 9,000+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum breakdown voltage is 6V at 1 mA.
The maximum peak pulse current is 5.3A for an 8/20 µs waveform.
It is available in a 10-UDFN exposed pad package (supplier device package 10-DFN 4.1x2mm).
