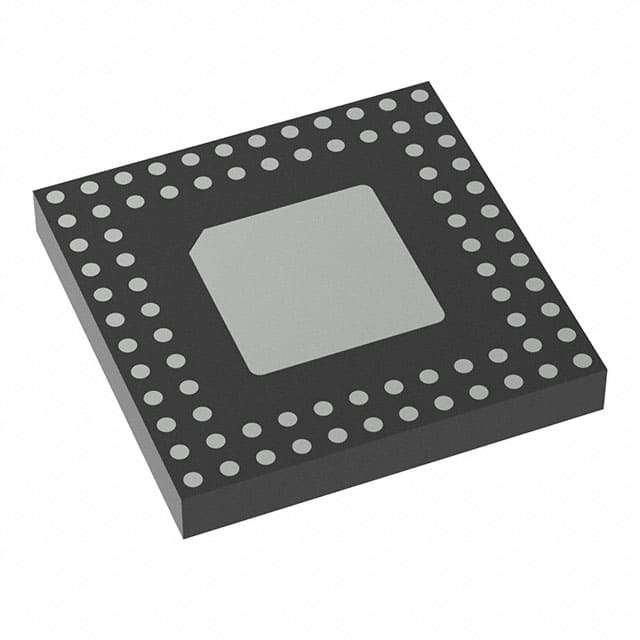

CDCDB2000NPPR The Texas Instruments CDCDB2000NPPR is a DB2000QL compliant, 20-output clock buffer. It distributes reference clocks for PCIe Gen 1-7, QPI, UPI, SAS, and SATA interfaces.
Mfr Part #:

CDCDB2000NPPR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CDCDB2000NPPR is a DB2000QL compliant, 20-output clock buffer. It distributes reference clocks for PCIe Gen 1-7, QPI, UPI, SAS, and SATA interfaces.
✓ Total Stock: 7,879 pcs
$ Price Range: $2.07

CDCDB2000NPPR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
4,879 pcs
On Request
4879 pcs On Request 1 On Request On Request 19+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CDCDB2000NPPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Input Type
Mounting Type
Number of Circuits
Number of Outputs
Operating Temperature
Output
Output Type
Power Consumption
Ratio
Supplier Device Package
Type
Voltage
View Similar Products (0)

CDCDB2000NPPR Description

Short technical summary and product information.

The Texas Instruments CDCDB2000NPPR is a high-performance clock buffer designed for demanding applications requiring precise clock distribution. This device features 20 LP-HCSL outputs and is compliant with the DB2000QL specification, making it suitable for PCIe Gen 1 through Gen 7, QuickPath Interconnect (QPI), UPI, SAS, and SATA interfaces.



Key electrical characteristics include a core and output supply voltage of 3.3V, a maximum frequency of 250 MHz, and low additive RMS jitter of typically 0.08 ps rms after its internal filter. The buffer offers an output skew of 50 ps and an input-to-output delay of less than 3 ns. Control is managed via SMBus, SBI, and 8 hardware output enable pins, allowing individual configuration of all 20 outputs.



Packaged in an 80-lead TLGA/GQFN (6mm x 6mm) with an exposed pad, the CDCDB2000NPPR is designed for surface mounting. It operates within a temperature range of -40°C to 85°C. The device supports spread spectrum clocking and includes hardware-controlled low power modes.



This clock buffer is ideal for systems requiring reliable and low-jitter clock signal distribution, ensuring signal integrity for high-speed serial interfaces.

CDCDB2000NPPR Quick Information

Product Type: Clock Buffer
Canonical Name: CDCDB2000NPPR DB2000QL Compliant 20-Output Clock Buffer
Subcategory: Clock Buffers, Drivers

CDCDB2000NPPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CDCDB2000NPPR Estimated Pricing

Qty Low High
1+ $2.07 $2.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

CDCDB2000NPPR Features

  • 20 LP-HCSL outputs for clock distribution.
  • DB2000QL compliant for PCIe Gen 1-7.
  • Low additive jitter of 0.08 ps rms.
  • 3.3V core and output supply voltage.
  • Surface mount 80-pin TLGA/GQFN package.

CDCDB2000NPPR Applications

  • Distributes clocks for PCIe Gen 1-7.
  • Supports QuickPath Interconnect (QPI).
  • Used for UPI, SAS, and SATA interfaces.
  • Ensures signal integrity in high-speed systems.
  • Enables flexible output control.

CDCDB2000NPPR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the CDCDB2000NPPR?

The operating temperature range is -40°C to 85°C.

How many outputs does the CDCDB2000NPPR clock buffer have?

The CDCDB2000NPPR has 20 outputs.

What is the typical additive RMS jitter for the CDCDB2000NPPR?

The typical additive RMS jitter after the DB2000QL filter is 0.08 ps rms.

What supply voltage does the CDCDB2000NPPR require?

It requires a 3.3V core and output supply voltage.

What is the output skew of the CDCDB2000NPPR?

The output skew is typically 50 ps.

What type of output signals does the CDCDB2000NPPR provide?

It provides LP-HCSL output signals.

What package type is the CDCDB2000NPPR available in?

It is available in an 80-TLGA (6x6) and an 80-VFLGA Exposed Pad package.
