CDC3RL02YFPR The Texas Instruments CDC3RL02YFPR is a dual-channel clock fan-out buffer. It offers 2 outputs and operates at frequencies up to 52 MHz.
Mfr Part #:

CDC3RL02YFPR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CDC3RL02YFPR is a dual-channel clock fan-out buffer. It offers 2 outputs and operates at frequencies up to 52 MHz.
✓ Total Stock: 1,528 pcs
$ Price Range: $0.65

CDC3RL02YFPR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CDC3RL02YFPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Input Type
Mounting Type
Number of Circuits
Number of Outputs
Operating Temperature
Output
Output Type
Ratio
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

CDC3RL02YFPR Description

Short technical summary and product information.

The Texas Instruments CDC3RL02YFPR is a dual-channel clock fan-out buffer designed for portable end-equipment. It buffers a single clock source to multiple peripherals, accepting sine or square wave inputs and providing square wave outputs.



Key electrical specifications include a core supply voltage of 1.8V and an output supply voltage of 1.8V. It offers 2 outputs with a frequency of 52 MHz and an output skew of 500 ps. The device features low additive noise of -149dBc/Hz at 10kHz offset and phase noise of 0.37 ps (RMS). The operating temperature range is -40°C to 85°C.

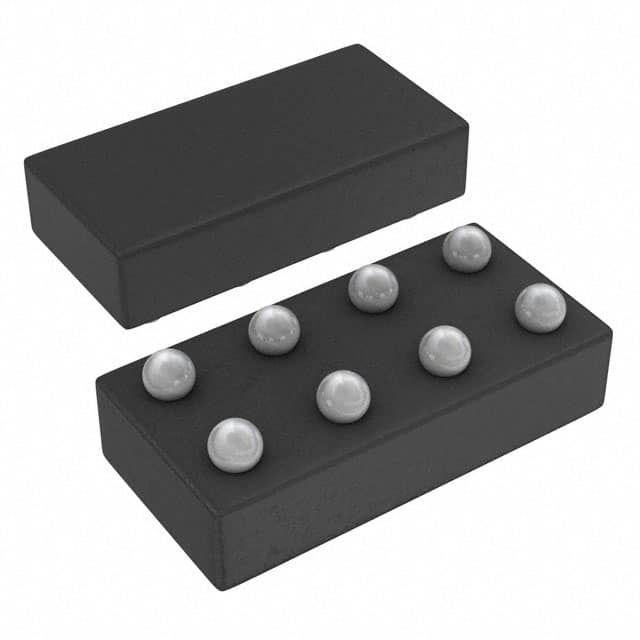

The CDC3RL02YFPR is housed in an ultra-small 8-bump YFP (DSBGA) package, measuring 1.8 mm². It supports surface mount mounting.



This buffer is suitable for applications requiring clock buffering with minimal additive phase noise and fan-out capabilities, such as in mobile phones.

CDC3RL02YFPR Quick Information

Product Type: Clock Buffer
Canonical Name: CDC3RL02 Dual-channel square/sine-to-square wave clock buffer
Subcategory: Clock Buffers, Drivers

CDC3RL02YFPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CDC3RL02YFPR Estimated Pricing

Qty Low High
1+ $0.65 $0.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

CDC3RL02YFPR Features

  • Dual-channel clock fan-out buffer.
  • Accepts sine or square wave inputs.
  • Provides square wave outputs.
  • Low additive phase noise.
  • Ultra-small 8-bump YFP package.

CDC3RL02YFPR Applications

  • Buffers clock source for multiple peripherals.
  • Suitable for portable end-equipment applications.
  • Minimizes EMI emissions and signal reflections.
  • Provides regulated 1.8V supply for peripherals.
  • Accepts square or sine wave clock inputs.

CDC3RL02YFPR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the CDC3RL02YFPR?

The operating temperature range is -40°C to 85°C.

What type of input does the CDC3RL02YFPR accept?

The CDC3RL02YFPR accepts sine and square wave inputs.

What is the output type of the CDC3RL02YFPR?

The output type is square wave.

What is the core supply voltage for this clock buffer?

The core supply voltage is 1.8V.

What is the output supply voltage for the CDC3RL02YFPR?

The output supply voltage is 1.8V.

What is the frequency of the CDC3RL02YFPR?

The frequency is 52 MHz.

What is the package type for the CDC3RL02YFPR?

The package type is 8-DSBGA.
