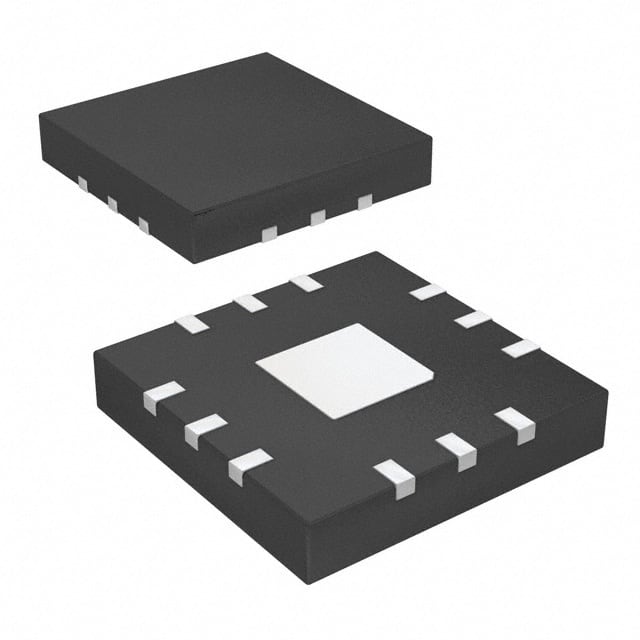

CDC1104RVKR The Texas Instruments CDC1104RVKR is a 1-to-4 configurable clock buffer. It features TTL input and output, with a supply voltage range of 3.8V to 5.5V.
Mfr Part #:

CDC1104RVKR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments CDC1104RVKR is a 1-to-4 configurable clock buffer. It features TTL input and output, with a supply voltage range of 3.8V to 5.5V.
✓ Total Stock: 51,564 pcs
$ Price Range: $0.48

CDC1104RVKR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Unit Electronics Co.,Limited ✓
Non-Authorised Inventory information
47,065 pcs
On Request
47065 pcs On Request 1 On Request On Request On Request On Request On Request
Rayichip ✓
Non-Authorised Inventory information
4,499 pcs
On Request
4499 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CDC1104RVKR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Input Type
Mounting Type
Number of Circuits
Number of Outputs
Operating Temperature
Operating Temperature Range
Output
Output Type
Ratio
Supplier Device Package
Supply Voltage
Type
Voltage
View Similar Products (0)

CDC1104RVKR Description

Short technical summary and product information.

The Texas Instruments CDC1104RVKR is a 1-to-4 configurable clock buffer designed for low-frequency clock distribution. This device accepts a reference clock and generates four buffered output clocks, each operating at half the input frequency. It supports a TTL input and TTL output type, making it compatible with various digital systems.



The CDC1104RVKR operates within a supply voltage range of 3.8V to 5.5V and has an operating temperature range of -40°C to 85°C. Key electrical specifications include an output skew of 10000 ps and an output buffer drive strength of 8mA. The input reference clock frequency ranges from 120Hz to 240Hz, with the output clock frequency at 60Hz to 120Hz.



This clock buffer is housed in a 12-WQFN (3x3mm) package and is designed for surface mount applications. It includes four control pins for configurable phase selection of the clock outputs. The device also offers ESD protection, exceeding 2000V for the Human-Body Model and 500V for the Charged-Device Model, ensuring robustness in handling and operation.

CDC1104RVKR Quick Information

Product Type: Clock Buffer
Canonical Name: CDC1104 Clock Buffer
Subcategory: Clock Buffers, Drivers

CDC1104RVKR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CDC1104RVKR Estimated Pricing

Qty Low High
1+ $0.48 $0.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

CDC1104RVKR Features

  • 1-to-4 configurable clock buffer.
  • TTL input and TTL output.
  • Supply voltage 3.8V to 5.5V.
  • Operating temperature -40°C to 85°C.
  • 12-WQFN (3x3mm) surface mount package.

CDC1104RVKR Applications

  • Configurable clock buffer for 3D displays.
  • Generates 4 buffered output clocks.
  • Supports input reference clock frequencies.
  • Provides selectable clock output phases.
  • Suitable for low frequency clock distribution.

CDC1104RVKR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the CDC1104RVKR?

-40°C to 85°C

What type of package is the CDC1104RVKR in?

12-WQFN (3x3)

What is the output skew of the CDC1104RVKR?

10000ps

What are the input and output types for the CDC1104RVKR?

TTL

What is the supply voltage range for the CDC1104RVKR?

3.8V - 5.5V

What is the output buffer drive strength?

8mA
