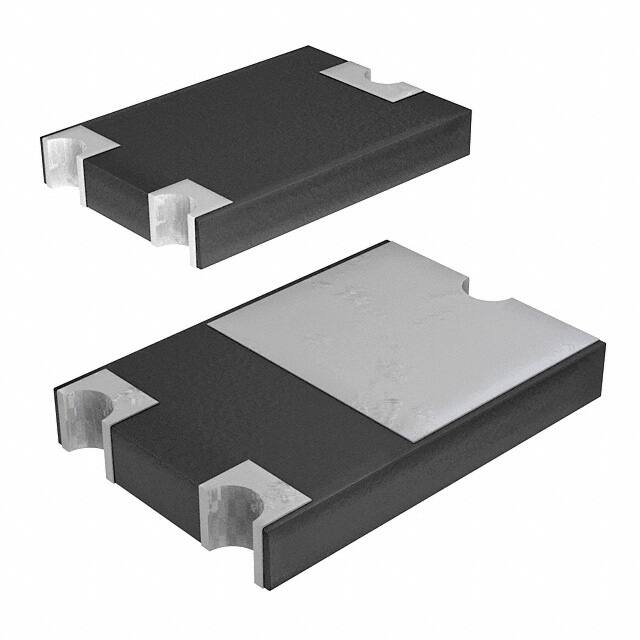

CDBZ61045-HF SMD Schottky barrier rectifier diode, 45V reverse voltage, 10A forward current, low forward voltage of 550mV, in surface mount TO-252 package.
Mfr Part #:

CDBZ61045-HF

Available from 1 distributors
Mfr Name: Comchip Technology
Comchip Technology
SMD Schottky barrier rectifier diode, 45V reverse voltage, 10A forward current, low forward voltage of 550mV, in surface mount TO-252 package.
✓ Total Stock: 155 pcs

CDBZ61045-HF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
155 pcs
On Request
155 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CDBZ61045-HF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Halogen Free
Mounting Type
Operating Temperature
Speed
Supplier Device Package
Technology
Termination Finish
Voltage
Weight
View Similar Products (0)

CDBZ61045-HF Description

Short technical summary and product information.

The CDBZ61045-HF from Comchip Technology is a surface mount Schottky barrier rectifier diode designed for low power loss and high efficiency. It features a maximum reverse voltage of 45V, an average rectified forward current of 10A, and a low forward voltage drop of 550mV at 10A.



The device offers high current capability with a peak forward surge current rating of 300A (8.3ms single half sine-wave). It is halogen free and RoHS3 compliant, with pure tin plated terminations. The TO-252 (Z6) package is compatible with standard surface mount assembly processes.



This rectifier is suitable for applications requiring fast switching and low forward voltage drop, such as power supply output rectification, freewheeling diodes, and DC-DC converters. The junction temperature range spans -55°C to 150°C.

CDBZ61045-HF Quick Information

Product Type: Schottky Barrier Rectifier Diode
Canonical Name: CDBZ61045-HF Schottky Barrier Rectifier Diode
Subcategory: Rectifier Diode

CDBZ61045-HF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CDBZ61045-HF Features

  • SMD Schottky barrier rectifier diode.
  • 45V reverse voltage, 10A forward current.
  • Low forward voltage of 550mV at 10A.
  • 300A peak forward surge current capability.
  • Halogen free and RoHS3 compliant.

CDBZ61045-HF Applications

  • Power supply output rectification circuits.
  • Freewheeling diode for inductive loads.
  • DC-DC converter output stage.
  • Reverse polarity protection applications.
  • High frequency switching power supplies.

CDBZ61045-HF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the CDBZ61045-HF?

The maximum reverse voltage (VRRM) is 45V.

What is the average rectified forward current rating?

The average forward current (Io) is 10A.

What is the forward voltage drop at 10A?

The maximum forward voltage at 10A is 550mV.

What package does this diode come in?

It comes in a surface mount TO-252 (Z6) package.

What is the operating temperature range?

The junction operating temperature range is -55°C to 150°C.
