| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,965 pcs
|
2965 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Forward Current | |
| Current | |
| Flammability Rating | |
| Forward Voltage | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package / Case | |
| Peak Forward Surge Current | |
| Repetitive Peak Reverse Voltage | |
| Reverse Leakage Current | |
| Speed | |
| Speed / Recovery Time | |
| Supplier Device Package | |
| Technology | |
| Termination Style | |
| Thermal Resistance - Junction to Case | |
| Thermal Resistance Junction-to-Ambient | |
| Voltage | |
| Weight |

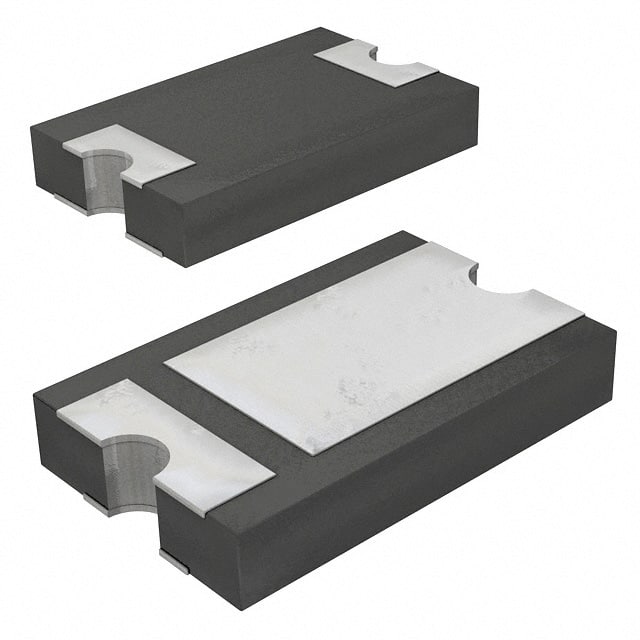

The Comchip Technology CDBZ5T1045-HF is a Schottky barrier rectifier diode designed for low power loss and high efficiency in power supply and polarity protection circuits. It offers a repetitive peak reverse voltage of 45V and an average forward current rating of 10A. The forward voltage drop is typically 0.48V at 10A, minimizing conduction losses. The device can handle a peak forward surge current of 300A, making it robust for inrush conditions. It is housed in a Z5PAK-T (SMC) surface-mount package with leadless, pure tin plated terminals for excellent solderability. The operating junction temperature ranges from -55°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.64 | $0.64 |
| 10+ | $0.58 | $0.58 |
| 100+ | $0.46 | $0.46 |
| 500+ | $0.36 | $0.36 |
| 1,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
45 V
10 A
0.48 V typical, 0.55 V maximum
Z5PAK-T (SMC) surface mount leadless package
-55°C to 150°C
