CDBHD160L-G CDBHD160L-G is a single-phase Schottky bridge rectifier rated for 60V peak repetitive reverse voltage and 1A average rectified current.
Mfr Part #:

CDBHD160L-G

Available from 1 distributors
Mfr Name: Comchip Technology
Comchip Technology
CDBHD160L-G is a single-phase Schottky bridge rectifier rated for 60V peak repetitive reverse voltage and 1A average rectified current.
✓ Total Stock: 90 pcs

CDBHD160L-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CDBHD160L-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Mounting Type
Operating Temperature
Package / Case
Supplier Device Package
Technology
Voltage
View Similar Products (0)

CDBHD160L-G Description

Short technical summary and product information.

The CDBHD160L-G is a single-phase Schottky bridge rectifier from Comchip Technology. It is designed for efficient AC-to-DC conversion in low-power applications. The device features a peak repetitive reverse voltage (VRRM) of 60V and an average rectified current (Io) of 1A. Schottky technology provides low forward voltage drop and fast switching, making it suitable for high-frequency rectification and power management circuits.

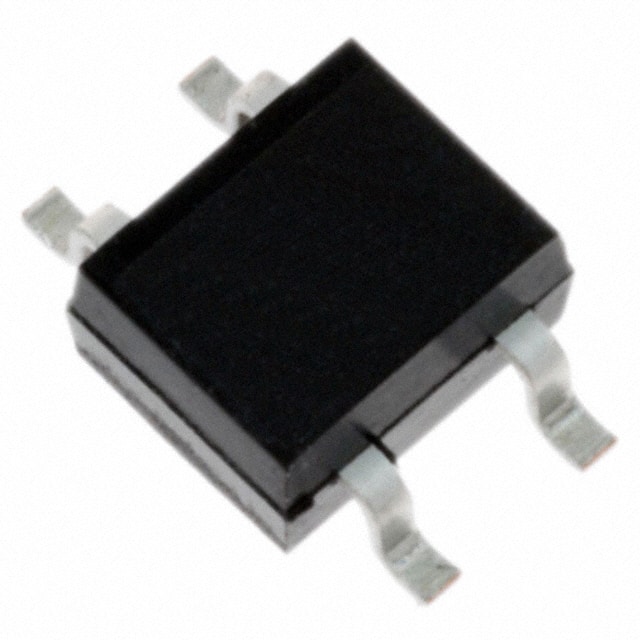

The rectifier is housed in a surface-mount TO-269AA (Mini-Dip) package, also known as 4-BESOP. It operates over a junction temperature range of -55°C to 125°C. The compact package enables space-saving designs on PCBs. The part is RoHS3 compliant and has an MSL rating of 1 (unlimited).



Typical applications include power supplies, adapters, and other circuits requiring full-wave rectification with minimal power loss. The CDBHD160L-G is a reliable choice for designs where efficiency and thermal performance are important.

CDBHD160L-G Quick Information

Product Type: Bridge Rectifier
Canonical Name: CDBHD160L-G Schottky Bridge Rectifier
Subcategory: Schottky Bridge Rectifier

CDBHD160L-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

CDBHD160L-G Features

  • Single-phase Schottky bridge rectifier.
  • Rated for 60V peak repetitive reverse voltage.
  • 1A average rectified current rating.
  • Surface mount Mini-Dip (TO-269AA) package.
  • Wide operating temperature range -55°C to 125°C.

CDBHD160L-G Applications

  • Used in low-power AC-DC power supplies.
  • Ideal for high-frequency rectification circuits.
  • Suitable for battery charger applications.
  • Used in adapter and converter designs.

CDBHD160L-G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the peak repetitive reverse voltage of CDBHD160L-G?

60V.

What is the average rectified current rating?

1A.

What package does the CDBHD160L-G come in?

Surface mount TO-269AA (Mini-Dip, 4-BESOP).

What is the operating temperature range?

-55°C to 125°C (junction).

Is the CDBHD160L-G RoHS compliant?

Yes, RoHS3 compliant.
