| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,344 pcs
|
2344 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Forward Current | |
| Capacitance | |
| Current | |
| Forward Voltage | |
| Junction Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Repetitive Peak Reverse Voltage | |
| Reverse Current | |
| Reverse Voltage | |
| Speed | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Technology | |
| Termination | |
| Voltage | |
| Weight |

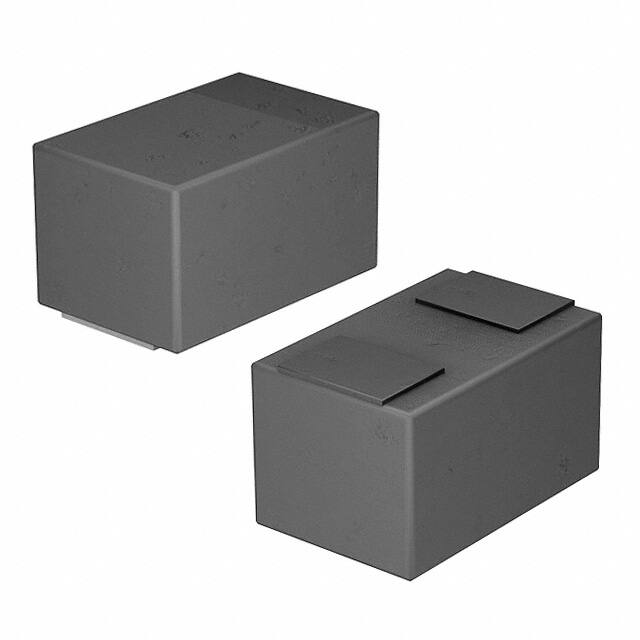

The CDBERT0230R is a Schottky barrier diode designed for low power rectification and switching applications. It features a maximum reverse voltage of 30V and a repetitive peak reverse voltage of 35V, with an average forward current rating of 200mA. The forward voltage is typically 600mV at 200mA, ensuring efficient operation. The diode exhibits low reverse leakage current of 1µA at 10V reverse bias. Its junction capacitance is 18.8pF at 0V bias and 1MHz, making it suitable for high-frequency circuits.
The device is housed in an ultra-thin 0503 (1308 metric) surface mount package with gold-plated terminals, weighing only 0.0011 grams. It operates over a junction temperature range up to 125°C and can be stored from -40°C to +125°C. The diode is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).
Typical applications include polarity protection, freewheeling diodes, and DC-DC converter rectification in space-constrained designs.
The maximum forward voltage is 600mV at 200mA forward current.
The maximum reverse voltage is 30V, with a repetitive peak reverse voltage of 35V.
The average forward current is 200mA.
The package is 0503 (1308 metric) surface mount.
The maximum reverse current is 1µA at 10V reverse bias.
The typical capacitance is 18.8pF at 0V bias and 1MHz.
The junction temperature can reach up to 125°C, and storage temperature ranges from -40°C to +125°C.
