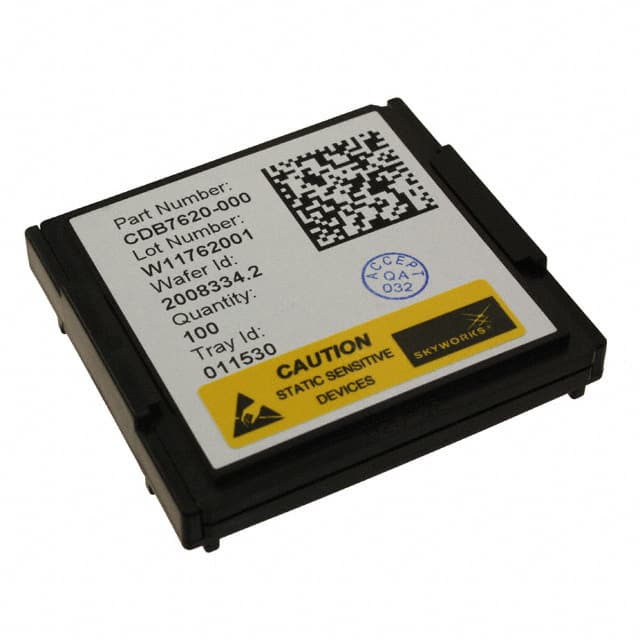

CDB7620-000 RF DIODE SCHOTTKY 2V CHIP. Skyworks Solutions CDB7620-000 is a Schottky barrier diode with 2V reverse voltage, 0.15pF capacitance, and 30 Ohm series resistance, in a Die/Chip package.
Mfr Part #:

CDB7620-000

Available from 1 distributors
Mfr Name: Skyworks Solutions
Skyworks Solutions
RF DIODE SCHOTTKY 2V CHIP. Skyworks Solutions CDB7620-000 is a Schottky barrier diode with 2V reverse voltage, 0.15pF capacitance, and 30 Ohm series resistance, in a Die/Chip package.
✓ Total Stock: 18,300 pcs

CDB7620-000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
18,300 pcs
On Request
18300 pcs On Request 1 On Request On Request 20+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

CDB7620-000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Vr, F
Diode Type
Resistance @ If, F
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

CDB7620-000 Description

Short technical summary and product information.

The CDB7620-000 is a Schottky barrier diode from Skyworks Solutions, designed for RF applications. It is a single diode with a reverse voltage rating of 2V and a low junction capacitance of 0.15 pF at 0V bias and 10MHz. The series resistance is 30 Ohm at 10mA forward current and 10MHz.



According to the datasheet extract, this diode is optimized for detector and mixer applications up to Ka-band frequencies. It features low 1/f noise and is available in bondable chip and beam-lead constructions. The chip is planar passivated for reliability.



The diode is supplied in a Die package with a Chip supplier package, suitable for hybrid microwave integrated circuits (MICs). It is categorized as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).

CDB7620-000 Quick Information

Product Type: RF Schottky Diode
Series: CDB7620
Canonical Name: RF Diode Schottky 2V Chip
Subcategory: RF Diode

CDB7620-000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

CDB7620-000 Features

  • Schottky barrier diode with 2V reverse voltage.
  • Low junction capacitance of 0.15 pF.
  • Series resistance of 30 Ohm at 10 mA.
  • Available in Die/Chip package.
  • Optimized for RF detector and mixer applications.

CDB7620-000 Applications

  • Used in RF detector circuits.
  • Ideal for Ku-band mixer applications.
  • Suitable for Doppler mixers and high-sensitivity detectors.
  • Can be used as modulators and high-speed switches.

CDB7620-000 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the reverse voltage rating of CDB7620-000?

The reverse voltage rating is 2V.

What is the package type of CDB7620-000?

The diode is supplied in a Die package with a Chip supplier package.

What is the junction capacitance of CDB7620-000?

The junction capacitance is 0.15 pF at 0V reverse bias and 10MHz.

What is the series resistance of CDB7620-000?

The series resistance is 30 Ohm at 10mA forward current and 10MHz.

What type of diode is CDB7620-000?

It is a Schottky - Single diode.
