| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
225 pcs
|
225 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Auxiliary Output | |
| Current | |
| Dimming | |
| Dimming Method | |
| Dimming Range | |
| EMI Classification | |
| Efficiency | |
| Features | |
| Height | |
| Ingress Protection (IP) Rating | |
| Length | |
| Lifetime | |
| Max Output Power | |
| Maximum Case Temperature (Hot Spot) | |
| Mounting Type | |
| Number of Outputs | |
| Output Current | |
| Output Voltage Range | |
| Power (Watts) | |
| Power Factor | |
| Protection Features | |
| Ratings | |
| Termination Style | |
| Topology | |
| Total Harmonic Distortion (THD) | |
| Type | |
| Voltage | |
| Width | |
| input_voltage_ac (Nominal @ Nominal) | |
| input_voltage_ac (Nominal) | |
| surge_protection (Nominal @ ANSI/IEEE c 62.41.1-2002 & c 62.41.2-2002 Category A) | |
| surge_protection (Nominal @ IEC 61000-4-5) |

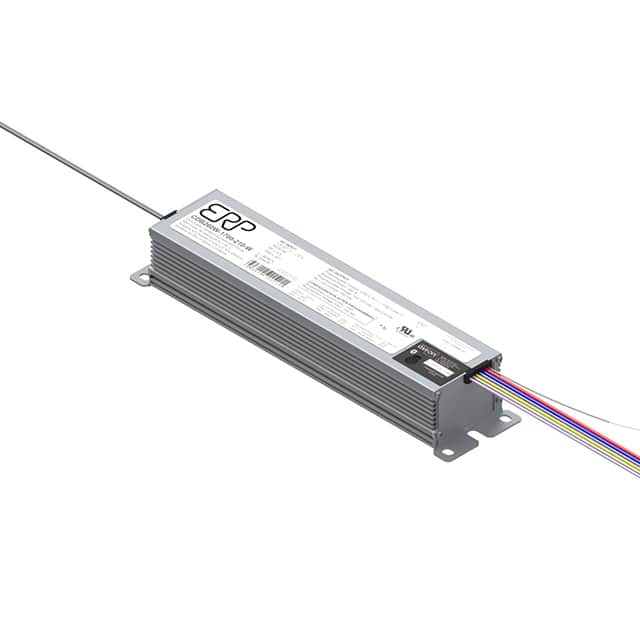

The CDB260W-1700-210-R is a 260-watt programmable constant current LED driver from the ERP Power, LLC CDB260 series. It accepts a nominal input voltage of 120/277 VAC and provides an output voltage range of 114 to 400 Vdc with output current settings of 1.24 A and 1.7 A. The driver features both analog and Bluetooth Mesh dimming with a 1% to 100% dimming range and a 0-10V interface.
Electrical performance includes typical efficiency of 93% and a power factor greater than 0.90. Protection features include overcurrent, overtemperature, and short circuit protection. It complies with FCC CFR Title 47 Part 15 Class A for EMI and provides surge protection of 4 kV line-to-line/line-to-earth per IEC61000-4-5 and 2.5 kV ring wave.
The driver is housed in an aluminum case rated IP66 for outdoor use, with dimensions 216.9 mm x 50.8 mm x 38.6 mm (8.54" x 2.00" x 1.52"). It includes an auxiliary 12V/100 mA output and features chassis mount with wire leads termination.
The nominal input voltage is 120/277 VAC.
It supports analog (0-10V) dimming and Bluetooth Mesh dimming with a 1% to 100% dimming range.
The typical efficiency is 93%.
The IP66 rating makes it suitable for outdoor use.
RoHS3 compliance is indicated, though not independently verified from source documents.
