| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
765 pcs
|
765 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Failure Rate | |
| Frequency | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage Supply |

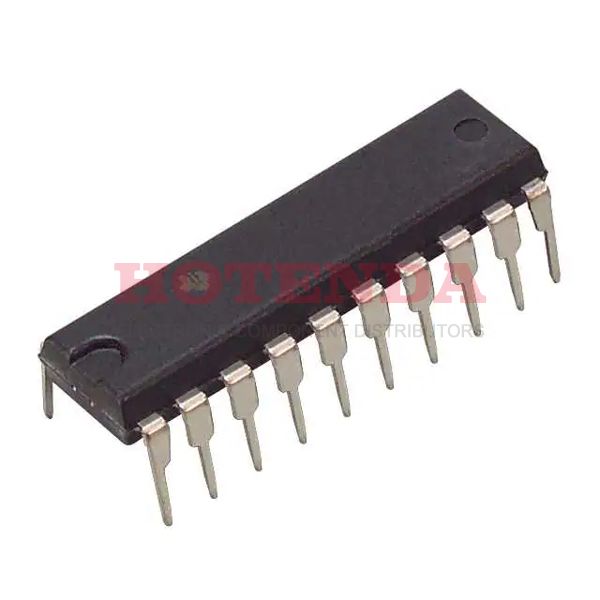

The CD74HCT574E from Texas Instruments is an 8-bit, D-type flip-flop designed for digital logic applications. It operates within a supply voltage range of 4.5V to 5.5V and can achieve frequencies up to 60MHz, making it suitable for various high-speed digital systems.
This component features a standard 20-pin Dual In-line Package (DIP) with a 0.300-inch lead spacing, designed for through-hole mounting. The operating temperature range is broad, spanning from -55°C to 125°C, ensuring reliable performance in diverse environmental conditions. The 74HCT series designation indicates its compatibility with standard TTL logic levels while operating from a higher voltage supply.
Key electrical characteristics include its D-type flip-flop functionality, enabling data storage and transfer in sequential logic circuits. Its active part status suggests ongoing availability for new designs and replacements. The device is packaged in a tube for distribution and handling.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the CD74HCT574E is 4.5V to 5.5V.
The maximum operating frequency of the CD74HCT574E is 60MHz.
The operating temperature range for the CD74HCT574E is -55°C to 125°C.
The CD74HCT574E is a D-Type flip-flop.
The CD74HCT574E has 20 pins.
The CD74HCT574E is supplied in a 20-DIP package and is designed for through-hole mounting.
