| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Direction | |
| Logic Type | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Reset | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage Supply |

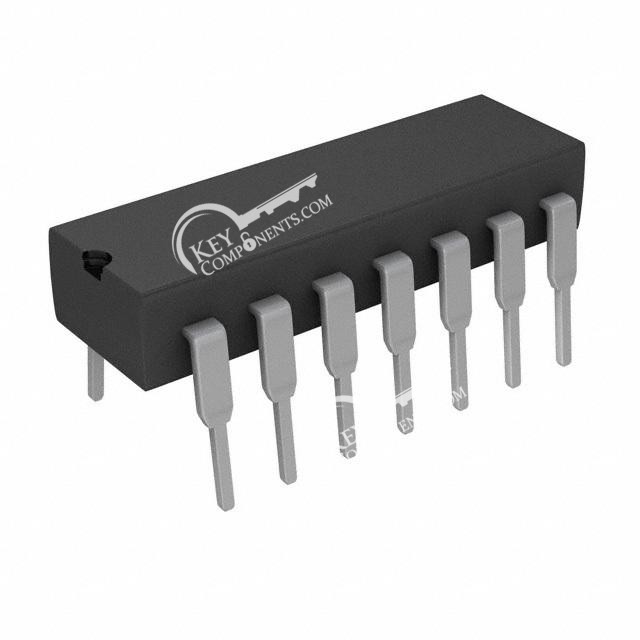

The CD74HCT4024E from RCA is a 7-stage ripple counter belonging to the 74HCT series. This integrated circuit is designed for digital logic applications requiring counting functionality.
Key electrical specifications include an operating voltage range of 4.5V to 5.5V and a maximum count rate of 25MHz. The counter operates with a negative edge trigger and features an asynchronous reset. It is configured as a single element with 7 bits per element.
The device operates across a wide temperature range of -55°C to 125°C, making it suitable for various environmental conditions. It is housed in a 14-DIP (0.300", 7.62mm) through-hole package, identified as 14-PDIP by the supplier.
This component is suitable for applications requiring reliable counting and division in digital systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.91 | $12.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is between 4.5V and 5.5V.
The operating temperature range is -55°C to 125°C.
The maximum count rate is 25MHz.
It is a 7-stage binary ripple counter.
It is supplied in a 14-DIP (0.300", 7.62mm) through-hole package.
