| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Inputs | |
| Lead Spacing | |
| Mounting Type | |
| Output Type | |
| Propagation Delay | |
| Storage Temperature | |
| Tape & Reel | |
| Technology |

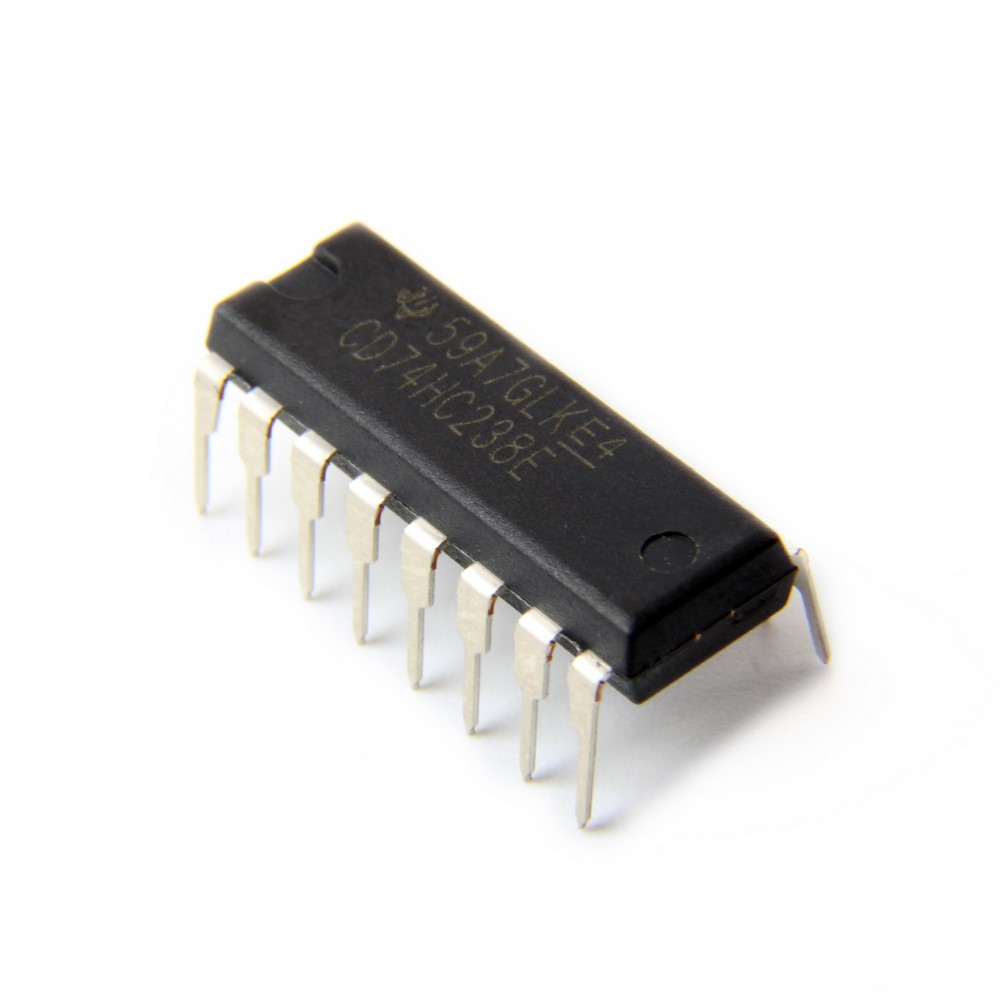

The CD74HC238E is a 3-to-8 line decoder/demultiplexer IC manufactured by Texas Instruments. It belongs to the High-Speed CMOS (HC) family, offering high speed with low power consumption.
This component features active-high outputs and is designed for converting binary coded inputs into one of eight active-high output lines. It supports an operating voltage range of 2V to 6V and operates reliably in extreme temperatures from -55°C to +125°C. The typical propagation delay is 30ns.
Key applications include memory address decoding, signal demultiplexing, and driving 7-segment displays. Its wide operating voltage and temperature range make it suitable for demanding environments such as automotive, aerospace, and industrial control systems. The DIP-16 package with through-hole mounting is standard for this device.
The CD74HC238E is ideal for low-power battery-operated devices and projects requiring stable performance in noisy electrical environments due to its high noise immunity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CD74HC238E operates between 2V and 6V.
The CD74HC238E operates from -55°C to +125°C.
The typical propagation delay for the CD74HC238E is 30ns.
The CD74HC238E is available in a DIP-16 package.
The CD74HC238E is a through-hole mounted component.
The standard package quantity for the CD74HC238E is 25 units.
