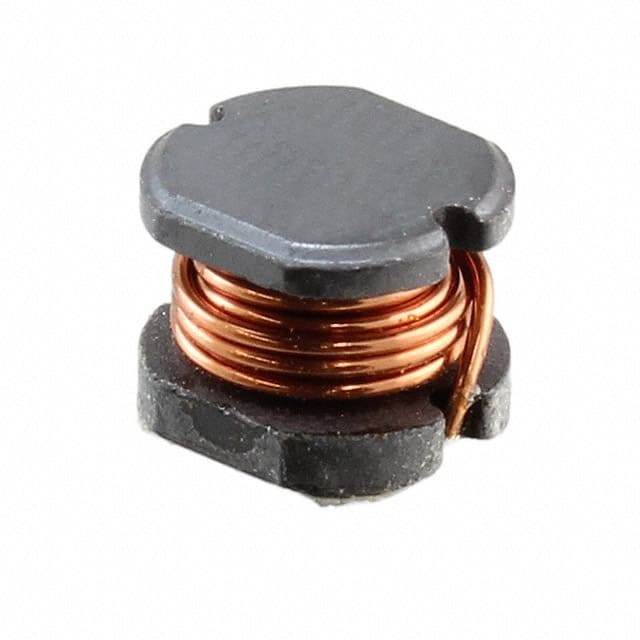

The CD54NP-220MC is a surface mount power inductor from Sumida Corp's CD54 series. It features a ferrite drum core construction and is unshielded. The inductor has an inductance of 22µH at 2.52MHz with ±20% tolerance.
Electrical characteristics include a maximum DC resistance of 180mOhm at 20°C and a rated current of 1.11A (based on a 40°C temperature rise or 90% inductance drop). The operating temperature range is -40°C to +100°C.
The component is packaged in a nonstandard case with dimensions 5.80mm x 5.20mm x 4.85mm. It is supplied in tape and reel packaging with 1500 pieces per reel. The solder reflow peak temperature is 260°C.
Typical applications include DC-DC converters in mobile phones, PDAs, MP3 players, and portable DVD players. The inductor is RoHS compliant and has MSL Level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.80 | $0.80 |
| 10+ | $0.65 | $0.65 |
| 100+ | $0.54 | $0.54 |
| 250+ | $0.53 | $0.53 |
| 1,000+ | $0.52 | $0.52 |
| 1,500+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 µH at 2.52 MHz.
1.11 A (based on 40°C temperature rise or 90% inductance drop).
180 mOhm maximum at 20°C.
Nonstandard surface mount package, dimensions 5.80mm x 5.20mm x 4.85mm.
±20%.
-40°C to +100°C.
No, it is unshielded.
