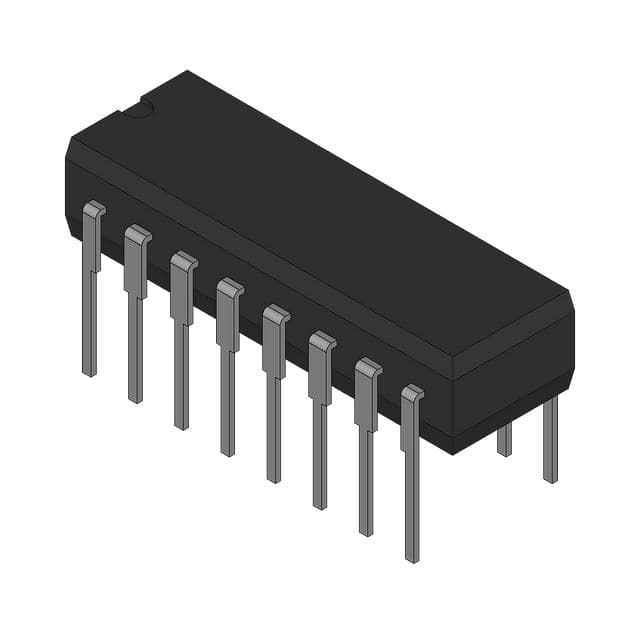

The CD54HCT166F3A from Texas Instruments is an 8-bit shift register designed for high-speed CMOS logic applications. This device utilizes silicon gate CMOS technology, offering low power consumption comparable to standard CMOS integrated circuits while achieving speeds similar to low power Schottky devices.
Key electrical specifications include a clock frequency of up to 24 MHz, an IOL of 4 mA, and an IOH of -4 mA. The supply current is a maximum of 160 µA. It features TTL-compatible CMOS inputs and push-pull outputs. The operating temperature range is wide, spanning from -55°C to 125°C.
This shift register is configured for parallel-in and serial-out data transfer. It supports a fanout of 10 LSTTL loads for standard outputs and 15 LSTTL loads for bus driver outputs. The propagation delay (tpd) ranges from 10 to 50 ns.
The CD54HCT166F3A is packaged in a CDIP (J) format and is designed for through-hole mounting.
