| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
107 pcs
|
107 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Logic Type | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Voltage Supply |

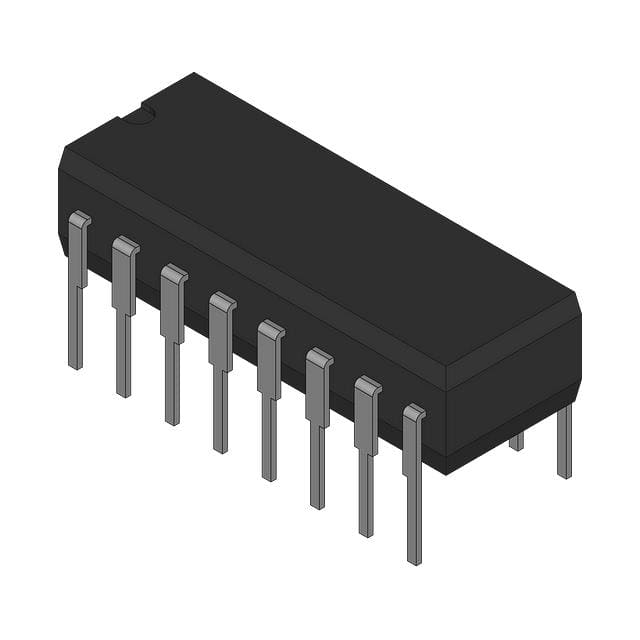

The CD54HC194F from RCA is a universal shift register, a type of integrated circuit used for data manipulation and storage. This bidirectional register operates across a wide temperature range of -55°C to 125°C, making it suitable for various environmental conditions.
Key electrical characteristics include a supply voltage range of 2V to 6V and a Push-Pull output type. The device is configured with 1 element containing 4 bits, supporting universal register functions. It is designed for through-hole mounting and comes in a 16-CDIP package.
This component is part of the 54HC series, indicating its logic family and performance characteristics. Its bidirectional nature allows for data shifting in either direction, providing flexibility in digital system design. The 16-CDIP package is suitable for applications requiring robust physical connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CD54HC194F operates within a supply voltage range of 2V to 6V.
The operating temperature range for the CD54HC194F is -55°C to 125°C.
The CD54HC194F is supplied in a 16-CDIP package.
The CD54HC194F is RoHS non-compliant.
