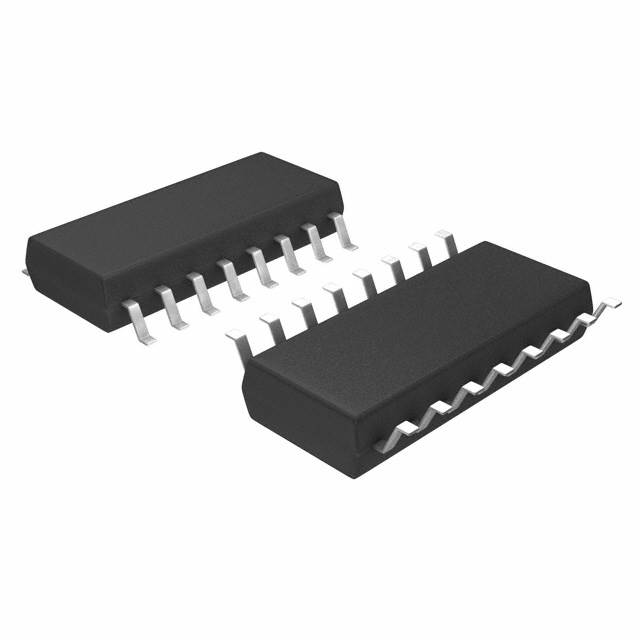

The Texas Instruments CD4536BNSR is a programmable timer IC belonging to the CD4000 technology family. This device features 24 ripple-binary counter stages, offering flexibility in timing functions. It can count from 2 up to 2^24 stages, with the last 16 stages selectable via a BCD code, allowing for precise control over timing sequences.
The CD4536BNSR operates over a wide voltage range of 3V to 18V and has a typical frequency of 5MHz. It is designed for surface mounting in a 16-SOIC package and operates across a broad temperature range of -55°C to 125°C. The device includes provisions for an on-chip RC oscillator and a monostable output, further enhancing its utility in various timing applications.
This programmable timer is suitable for applications requiring adjustable time delays, pulse generation, and frequency division. Its robust design and wide operating parameters make it a reliable choice for industrial and commercial electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CD4536BNSR operates from 3V to 18V.
The CD4536BNSR has a maximum frequency of 5MHz.
The CD4536BNSR operates from -55°C to 125°C.
The CD4536BNSR is available in a 16-SOIC package.
The CD4536BNSR is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the CD4536BNSR is 1 Unlimited.
